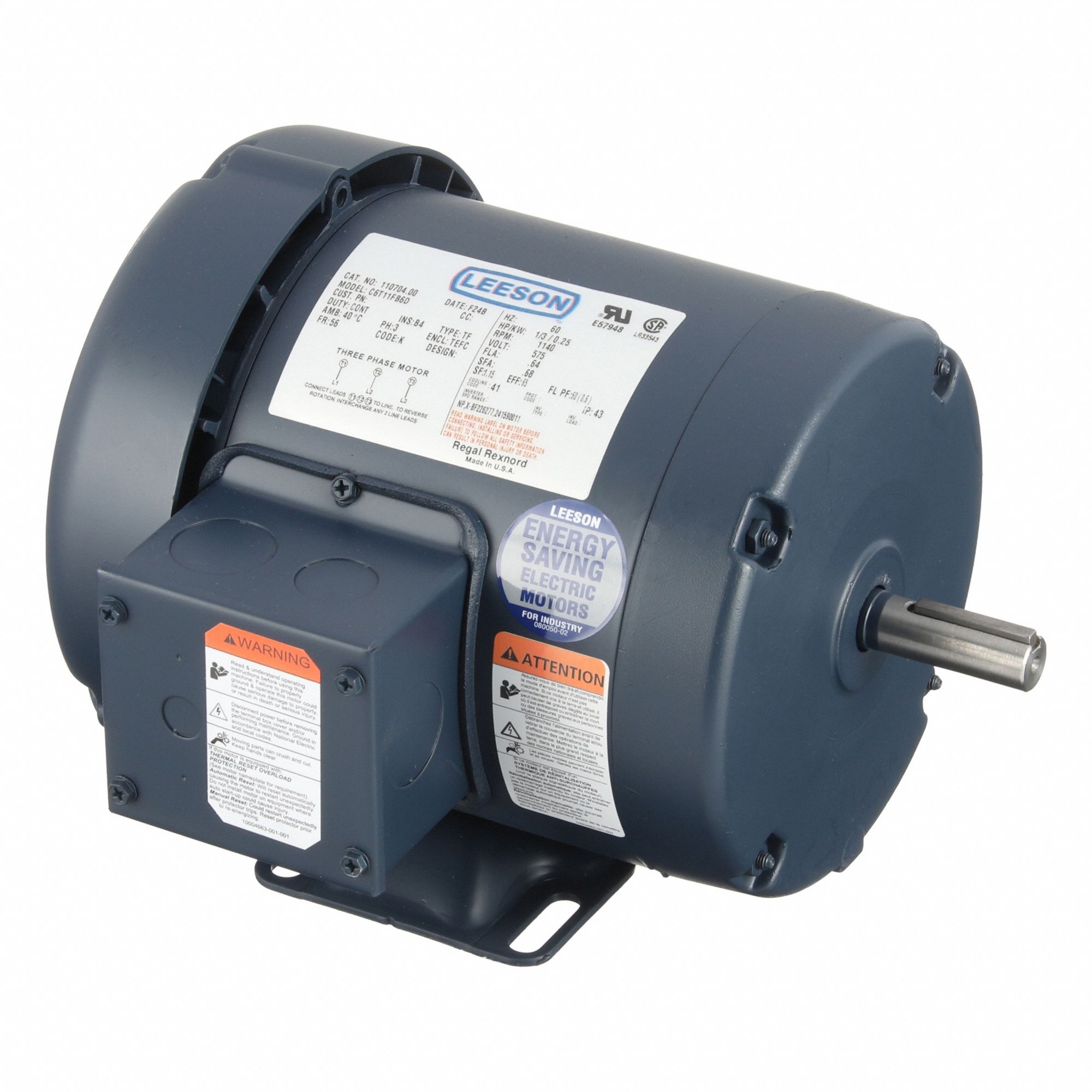

Leeson 3G-OTH-64733 — Technical Specifications
The LEESON General Purpose Motor (SKU 820HP9, MPN 110704.00) is a rigid base mount, 3-phase AC motor with a TEFC enclosure. It is rated at 1/3 hp, 575V AC, 0.64 A full load current, and 1,140 RPM at 60 Hz.
Technical Specifications
| Parameter | Value |
|---|---|
| AC | 575V |
| Type | Totally Enclosed Fan Cooled, 1/3 hp |
| Brand | LEESON |
| Motor Enclosure | TEFC |
| Nameplate RPM @ 60 Hz | 1,140 RPM |
| Manufacturer Part Number | 110704.00 |
| Full Load Current @ 60 Hz | 0.64 A |
| Nameplate Voltage @ 60 Hz | 575V AC |
