Leeson 3G-OTH-59759 — Technical Specifications

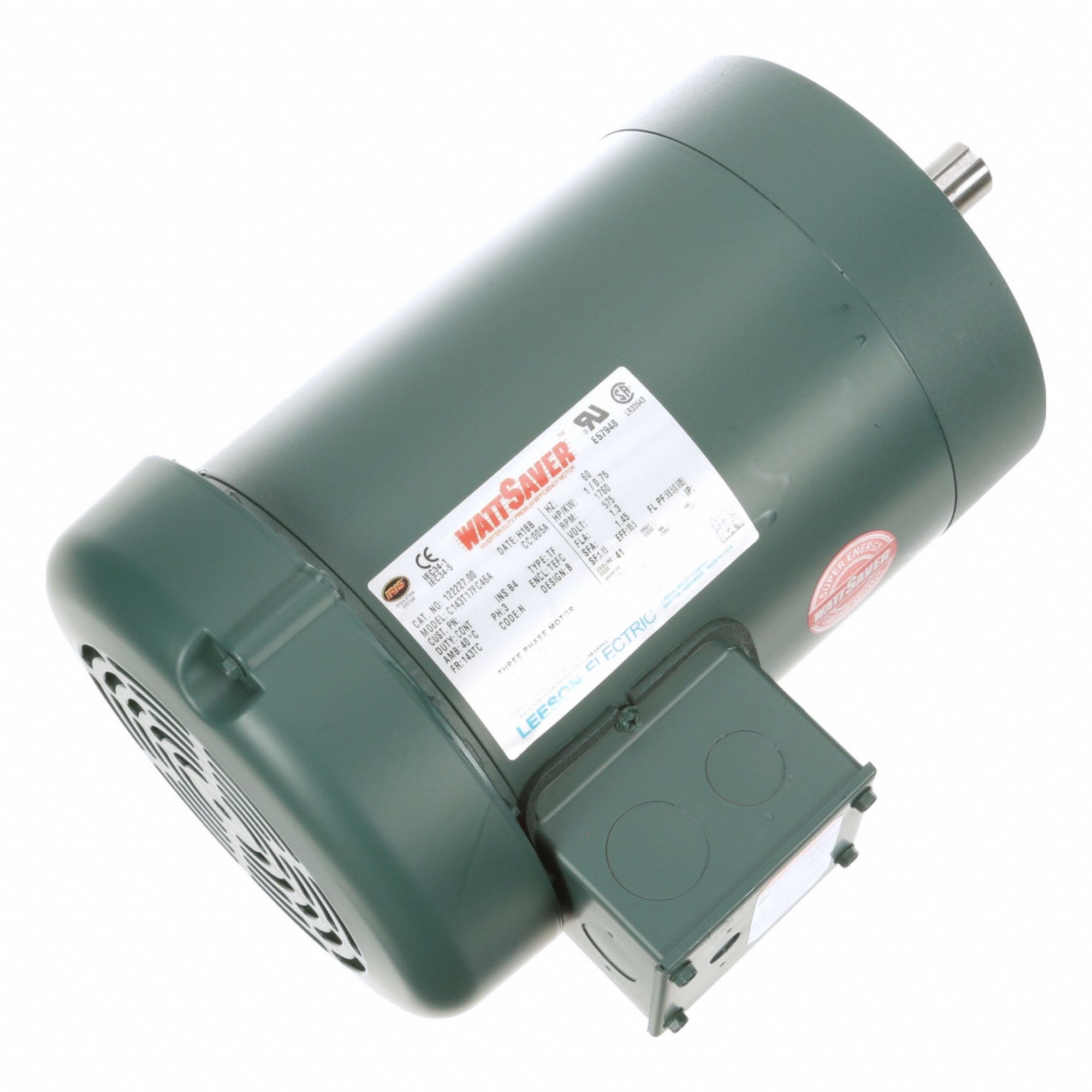

The LEESON General Purpose Motor (SKU 820HU5) is a C-Face 3-Phase AC motor with a TEFC enclosure. It delivers 1 hp at 1,760 RPM on 575V AC, drawing 1.36 A full load current (MPN 122227.00).
Technical Specifications
| Parameter | Value |
|---|---|
| AC | 575V |
| Type | Totally Enclosed Fan Cooled, 1 hp, 1,760 RPM |
| Brand | LEESON |
| Motor Enclosure | TEFC |
| Nameplate RPM @ 60 Hz | 1,760 RPM |
| Manufacturer Part Number | 122227.00 |
| Full Load Current @ 60 Hz | 1.36 A |
| Nameplate Voltage @ 60 Hz | 575V AC |
