Lithonia Lighting 3G-OTH-387116 — Technical Specifications

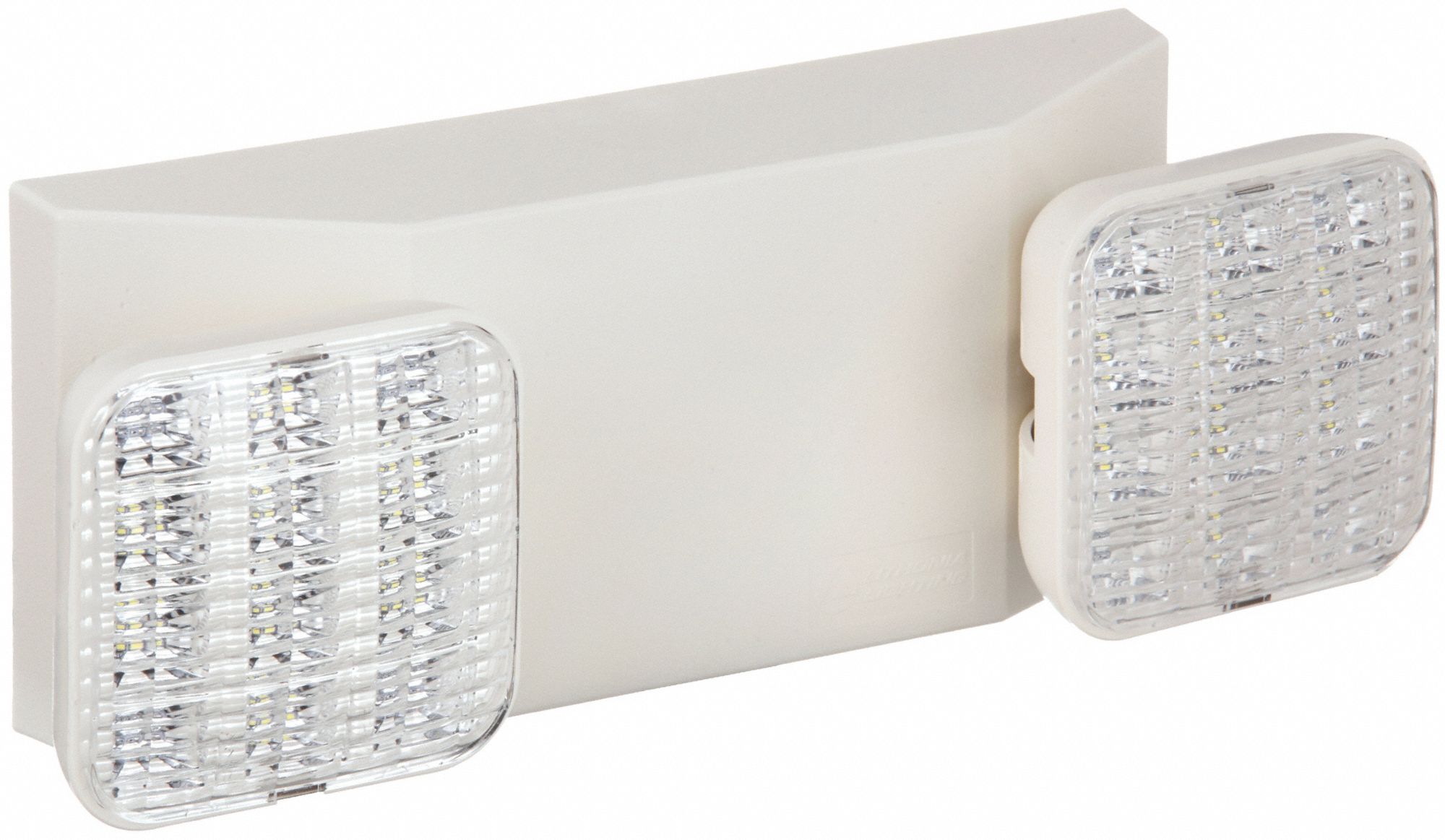

The LITHONIA LIGHTING EU2C LED is a plastic emergency light from the Contractor Select sub-brand, designed for surface wall mounting in damp locations. It operates on 120/277V AC input, with a 1 W lamp wattage and 3.6 W emergency wattage, and features adjustable lamp heads. This flame-rated unit complies with UL 924, NFPA 101, NFPA 70-NEC, California Energy Commission Title 20, FCC, and OSHA illumination standards.
Technical Specifications
| Parameter | Value |
|---|---|
| AC | 120/277V |
| Type | Damp Location Rated, Surface |
| Brand | LITHONIA LIGHTING |
| Series | EU2C |
| Features | Flame-Rated |
| Lamp Watt | 1 W |
| Standards | UL 924, NFPA 101, NFPA 70-NEC, California Energy Commission Title 20 Section 1605.3 (W)(4), FCC and OSHA Illumination Standards. |
| Sub-Brand | Contractor Select |
| Housing Color | White |
| Input Voltage | 120/277V AC |
| Mounting Type | Surface |
| Emergency Watt | 3.6 W |
| Remote Capable | No |
| Housing Material | Plastic |
| Self Diagnostics | No |
| Mounting Location | Wall |
| Lighting Technology | LED |
| Environmental Rating | Damp Location Rated |
| Adjustable Lamp Heads | Yes |
| Manufacturer Part Number | EU2C LED |
