Lithonia Lighting 3G-OTH-387120 — Technical Specifications

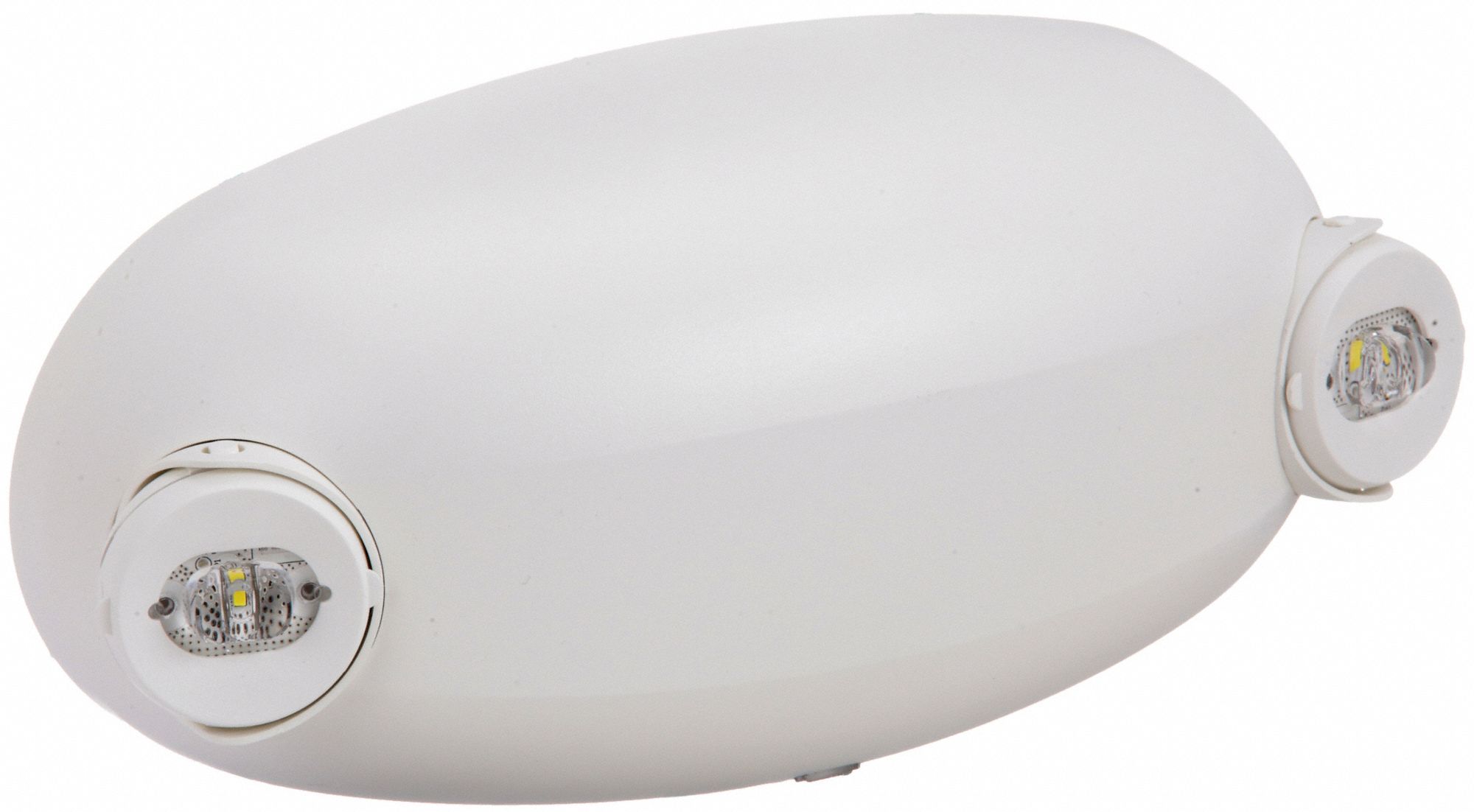

The LITHONIA LIGHTING ELM2L M12 is a plastic emergency light from the Contractor Select sub-brand, featuring LED technology with a 1.2 W lamp wattage and 4.8 W emergency wattage. It operates on 120/277V AC input voltage, is damp location rated, and includes adjustable lamp heads for surface wall mounting. This OSHA-compliant unit has a white plastic housing and is not remote capable.
Technical Specifications
| Parameter | Value |
|---|---|
| AC | 120/277V |
| Type | Damp Location Rated, White |
| Brand | LITHONIA LIGHTING |
| Series | ELM2L |
| Lamp Watt | 1.2 W |
| Standards | OSHA |
| Sub-Brand | Contractor Select |
| Housing Color | White |
| Input Voltage | 120/277V AC |
| Mounting Type | Surface |
| Emergency Watt | 4.8 W |
| Remote Capable | No |
| Housing Material | Plastic |
| Self Diagnostics | No |
| Mounting Location | Wall |
| Lighting Technology | LED |
| Environmental Rating | Damp Location Rated |
| Adjustable Lamp Heads | Yes |
| Manufacturer Part Number | ELM2L M12 |
