Lithonia Lighting 3G-OTH-387126 — Technical Specifications

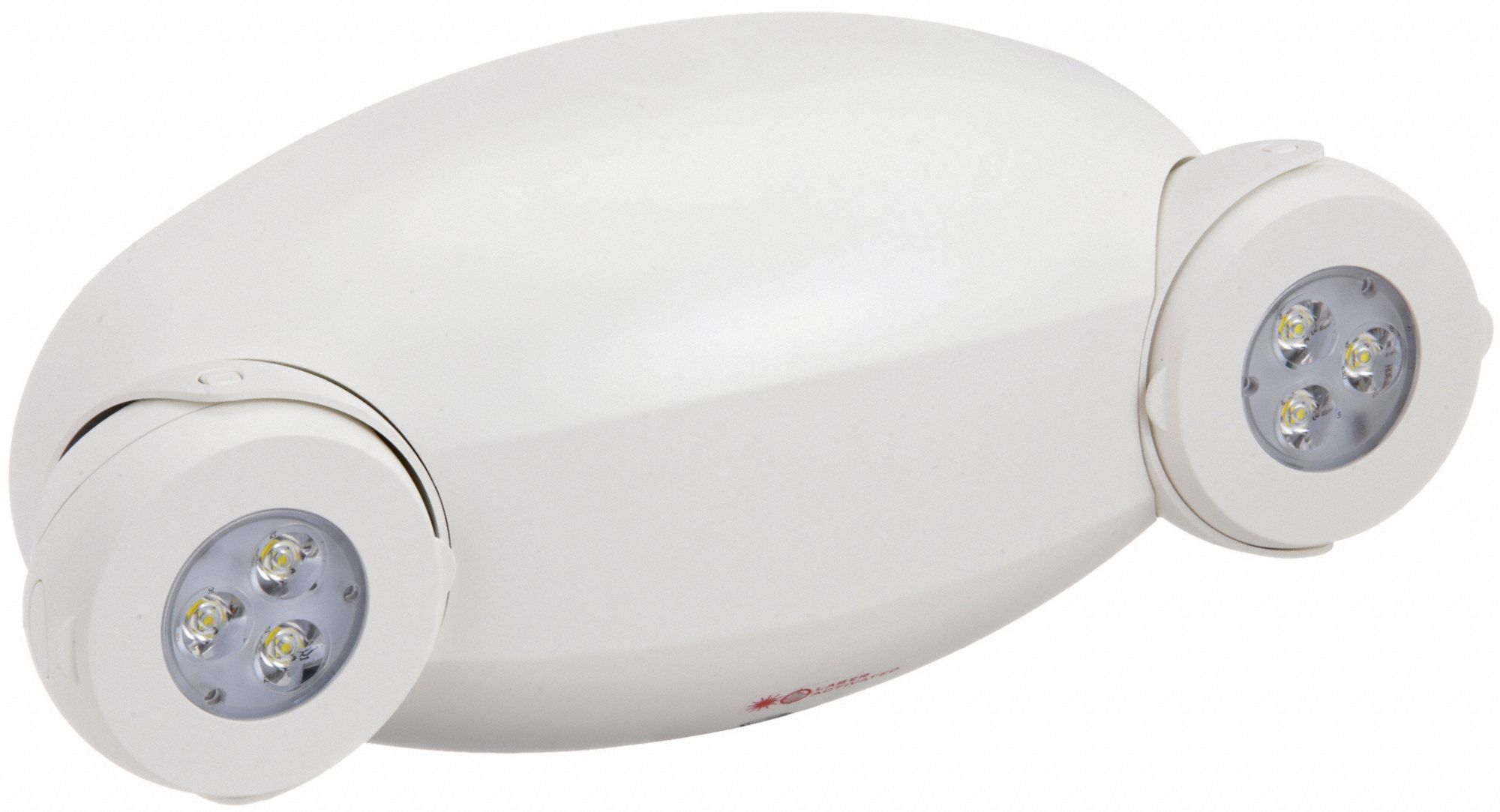

The LITHONIA LIGHTING ELM6L Quantum Series Emergency Light is a plastic, LED-based emergency light designed for surface ceiling mounting in damp locations. It operates on 120 to 347V AC input, with a 5.3 W lamp wattage and 22 W emergency wattage, and features high output, adjustable lamp heads, remote capability, and self-diagnostics. This unit complies with California Energy Commission Title 20 Section 1605.3 standards.
Technical Specifications
| Parameter | Value |
|---|---|
| AC | 120 to 347V |
| Type | Damp Location Rated |
| Brand | LITHONIA LIGHTING |
| Series | ELM6L |
| Features | High Output |
| Lamp Watt | 5.3 W |
| Standards | California Energy Commission Title 20 Section 1605.3 |
| Sub-Brand | Quantum Series |
| Housing Color | White |
| Input Voltage | 120 to 347V AC |
| Mounting Type | Surface |
| Emergency Watt | 22 W |
| Remote Capable | Yes |
| Housing Material | Plastic |
| Self Diagnostics | Yes |
| Mounting Location | Ceiling |
| Lighting Technology | LED |
| Environmental Rating | Damp Location Rated |
| Adjustable Lamp Heads | Yes |
| Manufacturer Part Number | ELM6L UVOLT LTP SDRT HO |
