Lithonia Lighting 3G-OTH-388208 — Technical Specifications

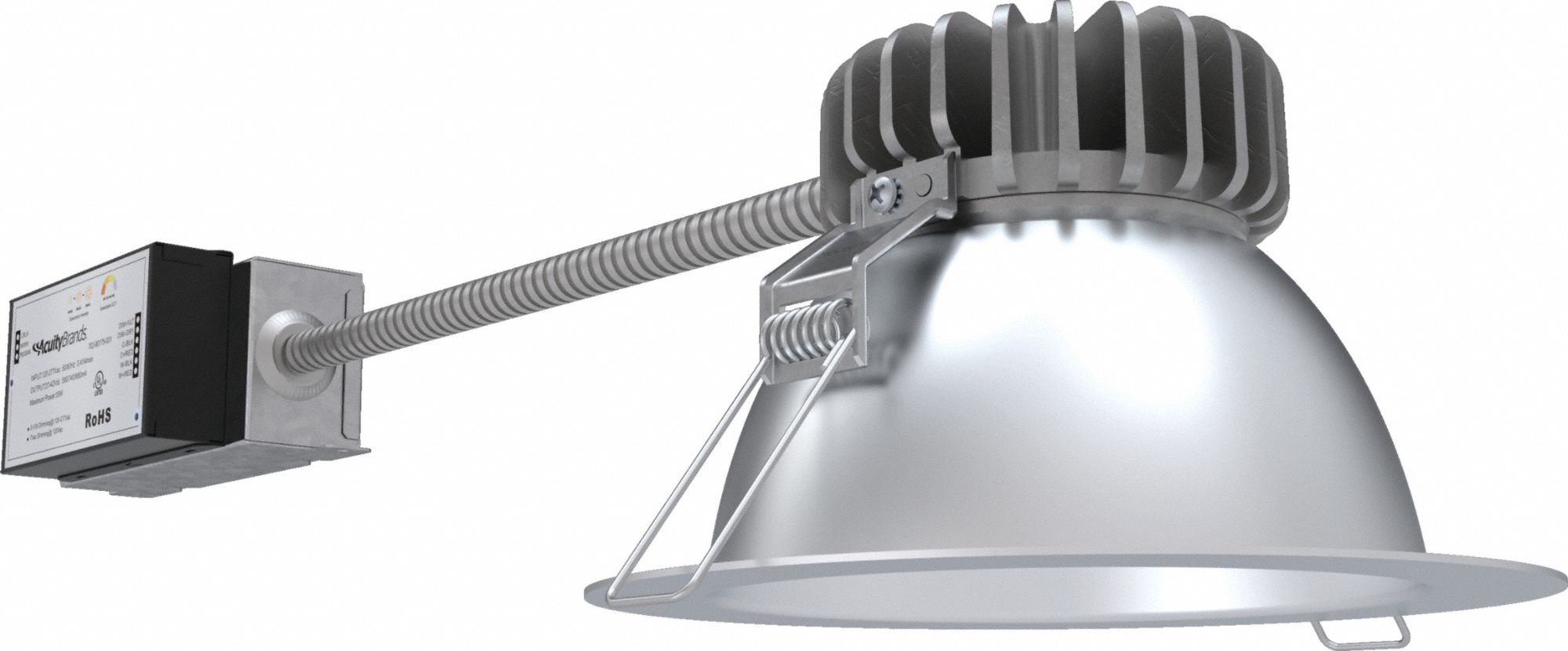

The LITHONIA LIGHTING LBR6 ALO2 SWW1 AR LSS MWD MVOLT UGZ QDS is a remodeled-ceiling recessed LED downlight housing with a 6-inch diameter and selectable lumen output of 1,000, 1,500, or 2,000 lumens. It operates on 120 to 277V AC, is dimmable, and features a clear trim with an open style and clear reflector for flat ceilings. The unit is configured for 3500K color temperature.
Technical Specifications
| Parameter | Value |
|---|---|
| Dia | 6 in |
| Type | 1,000 lm_1,500 lm_2,000 lm, 3000K/3500K/4000K/5000K |
| Brand | LITHONIA LIGHTING |
| Voltage | 120 to 277V AC |
| Dimmable | Yes |
| Trim Color | Clear |
| Trim Style | Open |
| Ceiling Type | Flat Ceiling |
| Color Temperature | 3500K |
| Manufacturer Part Number | LBR6 ALO2 SWW1 AR LSS MWD MVOLT UGZ QDS |
| Reflector Or Baffle Color | Clear Reflector |
