Madison 3G-OTH-90280 — Technical Specifications

Name: Madison 3G-OTH-90280 MADISON Industrial Continuous Level Transmitter: Float Level Sensor, 316 Stainless Steel, +/-0.25 in (MPN C4651-12802). Key specifications — Float Material: Polypropylene; Output Voltage Range: 4 to 20mA; Nameplate Voltage: 12/30V DC; Accuracy: +/-0.25 in; Body Material: 316 Stainless Steel; Brand: MADISON; Connection Type: NPT; Mounting Direction: Vertical.
Brand: Madison

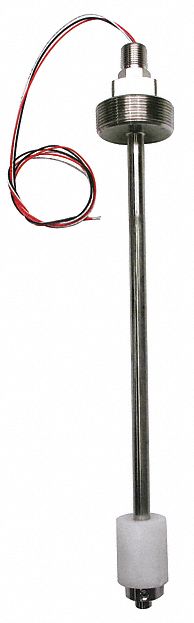

The MADISON Industrial Continuous Level Transmitter is a float level sensor designed for continuous level measurement of nonhazardous liquids. This rod-type probe features a 316 stainless steel body and stem, a polypropylene float, and a 4 to 20mA output voltage range with a nameplate voltage of 12/30V DC. It offers an accuracy of +/-0.25 in, mounts vertically, and uses an NPT connection, complying with CE standards.

View Product & Quote

Technical Specifications

Parameter	Value
Type	+/-0.25 in
Brand	MADISON
Accuracy	+/-0.25 in
Standards	CE
Probe Type	Rod
Product Type	Float Level Sensor
Body Material	316 Stainless Steel
Stem Material	316 Stainless Steel
Float Material	Polypropylene
For Media Type	Nonhazardous Liquids
Probe Material	316 Stainless Steel
Connection Type	NPT
Stainless Steel	316
Nameplate Voltage	12/30V DC
Mounting Direction	Vertical
Output Voltage Range	4 to 20mA
Manufacturer Part Number	C4651-12802
