Madison 3G-OTH-90313 — Technical Specifications

Name: Madison 3G-OTH-90313 MADISON Industrial Continuous Level Transmitter: Float Level Sensor, 316 Stainless Steel, +/-0.25 in (MPN C4651-12804). Key specifications — Float Material: Buna N; Output Voltage Range: 4 to 20mA; Nameplate Voltage: 12/30V DC; Accuracy: +/-0.25 in; Body Material: 316 Stainless Steel; Brand: MADISON; Connection Type: NPT; Mounting Direction: Vertical.
Brand: Madison

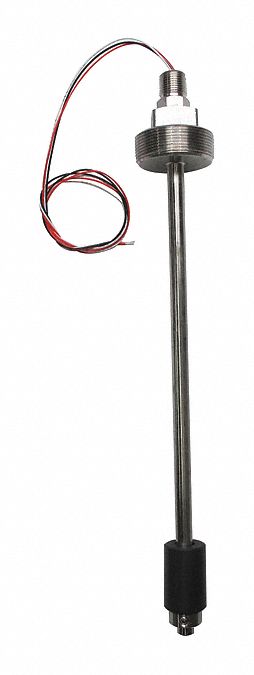

The MADISON Industrial Continuous Level Transmitter is a float level sensor with a rod probe, constructed from 316 Stainless Steel body and stem, and a Buna N float. It offers an accuracy of +/-0.25 in, operates on 12/30V DC with a 4 to 20mA output, and features a vertical NPT connection. This cULus-listed sensor is designed for chemical media.

View Product & Quote

Technical Specifications

Parameter	Value
Type	+/-0.25 in
Brand	MADISON
Accuracy	+/-0.25 in
Standards	cULus
Probe Type	Rod
Product Type	Float Level Sensor
Body Material	316 Stainless Steel
Stem Material	316 Stainless Steel
Float Material	Buna N
For Media Type	Chemicals
Probe Material	316 Stainless Steel
Connection Type	NPT
Stainless Steel	316
Nameplate Voltage	12/30V DC
Mounting Direction	Vertical
Output Voltage Range	4 to 20mA
Manufacturer Part Number	C4651-12804
