Metz Connect 3G-OTH-10368 — Technical Specifications

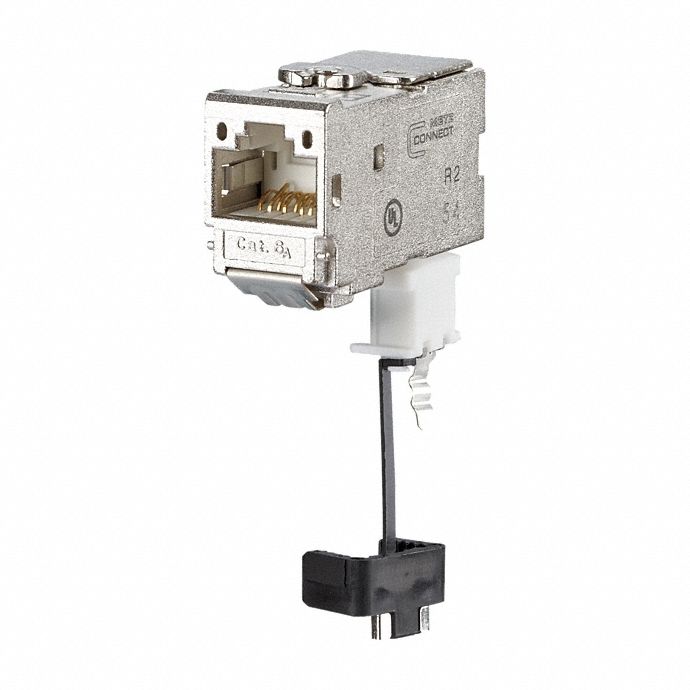

The METZ CONNECT Module: Cat6A (SKU 802LD0, MPN 130B12-E) is a device-side RJ45 connector module for data applications. This female, straight connector features a zinc die-cast housing with a metallike finish and uses insulation displacement connection for cable mounting. It is rated as Cat6A performance category.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Data/HDBaseT/Power, Straight, Cable, Female Straight, Female |
| Poles | 8 |
| Application | Data |
| Mounting Type | Cable |
| Connection Type | Insulation Displacement |
| Connector Color | Metallike |
| Connector Gender | Female |
| Housing Material | Zinc Die-Cast |
| RJ45 Connector Type | RJ45 / Cat6A Module |
| Performance Category | Cat6A |
| Connector Orientation | Straight |
| Manufacturer Part Number | 130B12-E |
