Metz Connect 3G-OTH-10326 — Technical Specifications

Name: Metz Connect 3G-OTH-10326 METZ CONNECT Keystone Module: Cat6A, Data/HDBaseT/Power, 8 Poles, 90° Angled, Cable, Zinc Die-Cast (MPN 130B23-E). Key specifications — Housing Material: Zinc Die-Cast; Mounting Type: Cable; Connector Color: Metallike; Performance Category: Cat6A; Application: HDBaseT; Connection Type: Insulation Displacement; Connector Gender: Female; Connector Orientation: 90° Angled.
Brand: Metz Connect

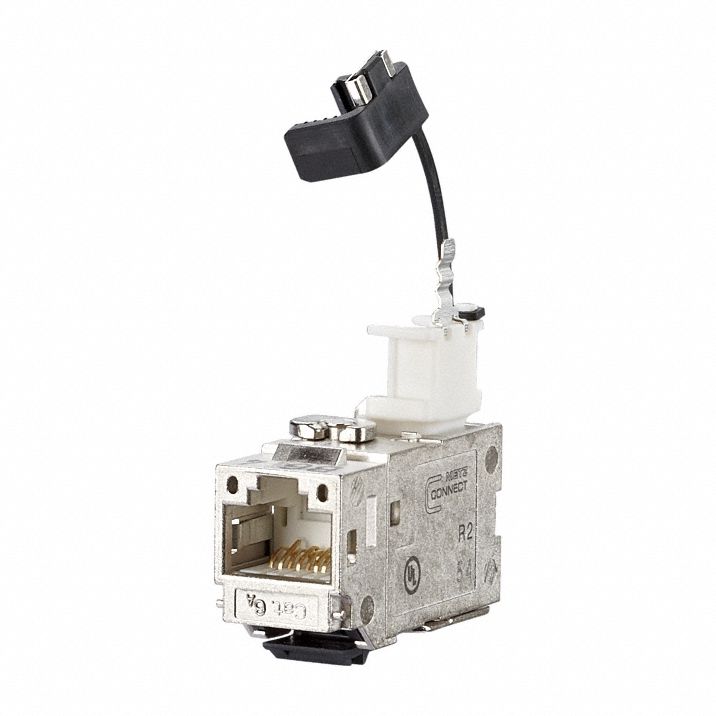

The METZ CONNECT Keystone Module: Cat6A (SKU 802LD5, MPN 130B23-E) is a Cat6A female RJ45 connector for cable mounting with a 90° angled orientation. It features an insulation displacement connection, a zinc die-cast housing in a metallike finish, and is designed for HDBaseT applications.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Data/HDBaseT/Power, Cable, Zinc Die-Cast
Poles	8
Angled	90°
Application	HDBaseT
Mounting Type	Cable
Connection Type	Insulation Displacement
Connector Color	Metallike
Connector Gender	Female
Housing Material	Zinc Die-Cast
RJ45 Connector Type	Keystone RJ45 / Cat6A Module
Performance Category	Cat6A
Connector Orientation	90° Angled
Manufacturer Part Number	130B23-E
