Metz Connect 3G-OTH-09829 — Technical Specifications

Name: Metz Connect 3G-OTH-09829 METZ CONNECT Terminal Rail Insert: Cat6, Data/HDBaseT/Power, 8 Poles, 90° Angled, Cable, Female (MPN 1401906113KE). Key specifications — Housing Material: Zinc Die-Cast; Mounting Type: Cable; Connector Color: Light Gray; Performance Category: Cat6; Application: HDBaseT; Connection Type: Insulation Displacement; Connector Gender: Female; Connector Orientation: 90° Angled.
Brand: Metz Connect

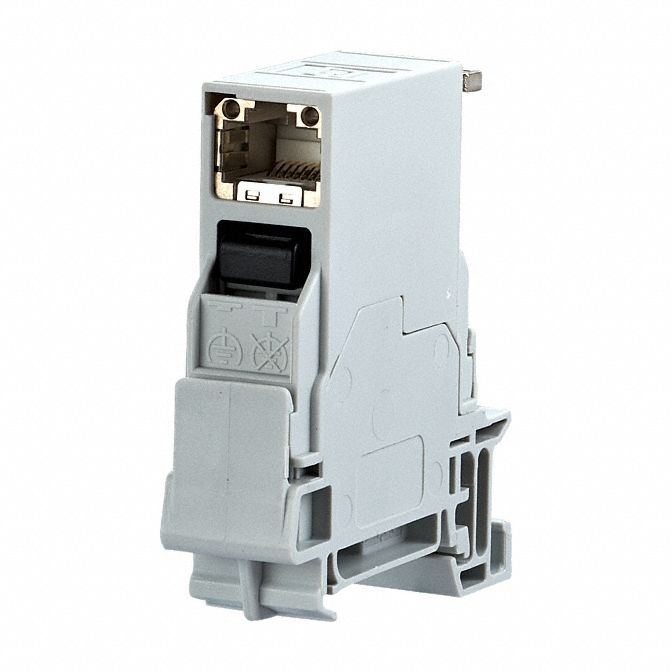

The METZ CONNECT Terminal Rail Insert: Cat6 is a rail-mount RJ45 connector module designed for HDBaseT applications. This female, 90° angled connector features a zinc die-cast housing and uses insulation displacement connection for cable mounting. It is rated as Cat6 performance and comes in a light gray color.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Data/HDBaseT/Power, Cable, Female
Poles	8
Angled	90°
Application	HDBaseT
Mounting Type	Cable
Connection Type	Insulation Displacement
Connector Color	Light Gray
Connector Gender	Female
Housing Material	Zinc Die-Cast
RJ45 Connector Type	DIN Rail Module
Performance Category	Cat6
Connector Orientation	90° Angled
Manufacturer Part Number	1401906113KE
