Midwest Instrument 3G-OTH-174345 — Technical Specifications

Name: Midwest Instrument 3G-OTH-174345 MIDWEST INSTRUMENT 3-Color Differential Pressure Indicator: 1,000 psig Max. Static Pressure, 522 (MPN 522A-025V-LA). Key specifications — Brand: MIDWEST INSTRUMENT; Accuracy: ±5% of Full Scale; Sensor Material: Viton; Housing Material: Aluminum; Transition Points: 0 psid to 11 psid (Green) / 11 psid to 18.5 psid (Yellow) / 18.5 psid to 25 psid (Red).
Brand: Midwest Instrument

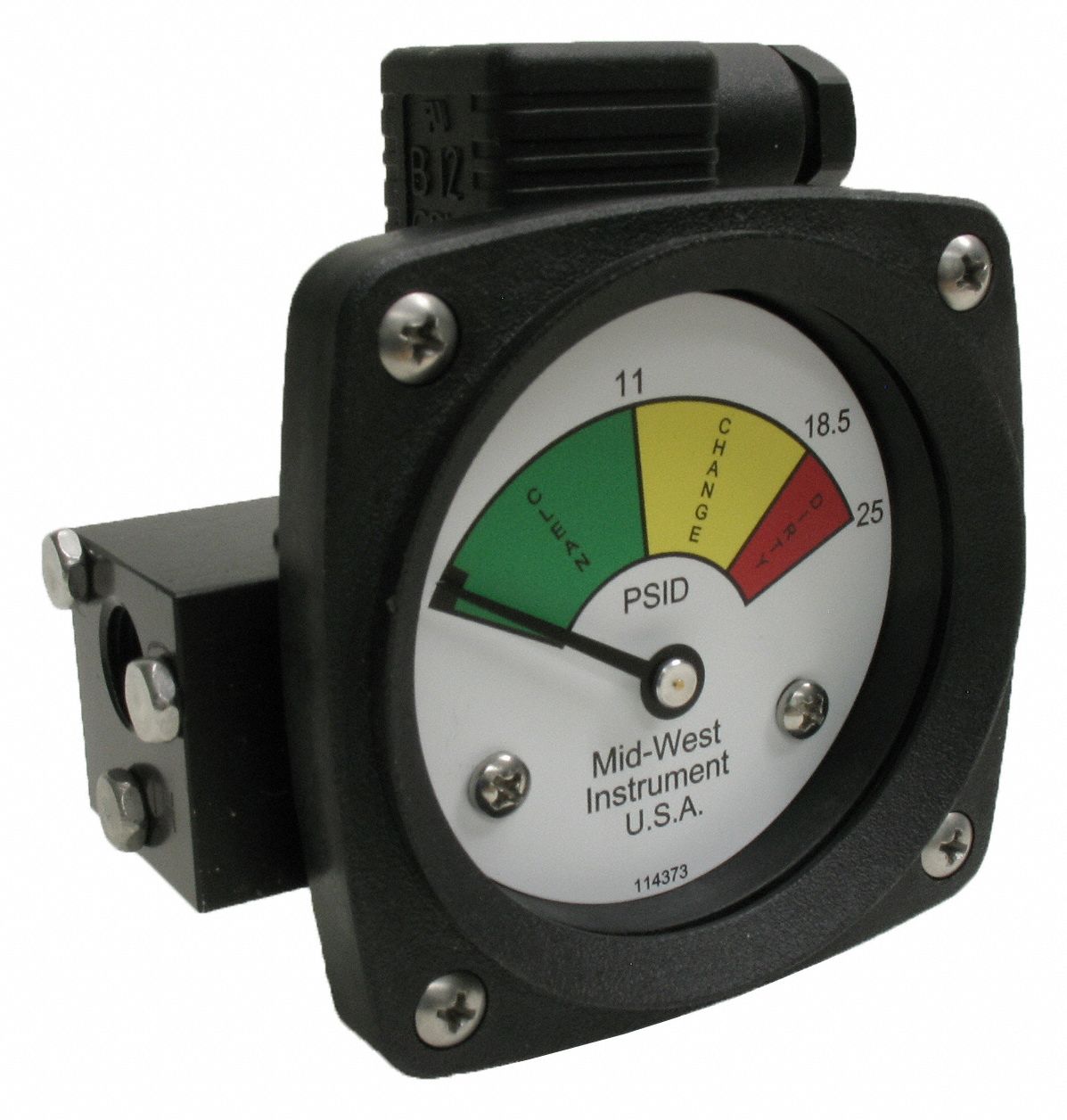

The MIDWEST INSTRUMENT 3-Color Differential Pressure Indicator (MPN 522A-025V-LA) is a differential pressure indicator with switch, featuring a Viton sensor and aluminum housing. It offers ±5% of Full Scale accuracy and three color-coded transition points: green from 0 psid to 11 psid, yellow from 11 psid to 18.5 psid, and red from 18.5 psid to 25 psid, with a maximum static pressure of 1,000 psig.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Static Pressure, 522
Brand	MIDWEST INSTRUMENT
Accuracy	±5% of Full Scale
Sensor Material	Viton
Housing Material	Aluminum
Transition Points	0 psid to 11 psid (Green) / 11 psid to 18.5 psid (Yellow) / 18.5 psid to 25 psid (Red)
Manufacturer Part Number	522A-025V-LA
