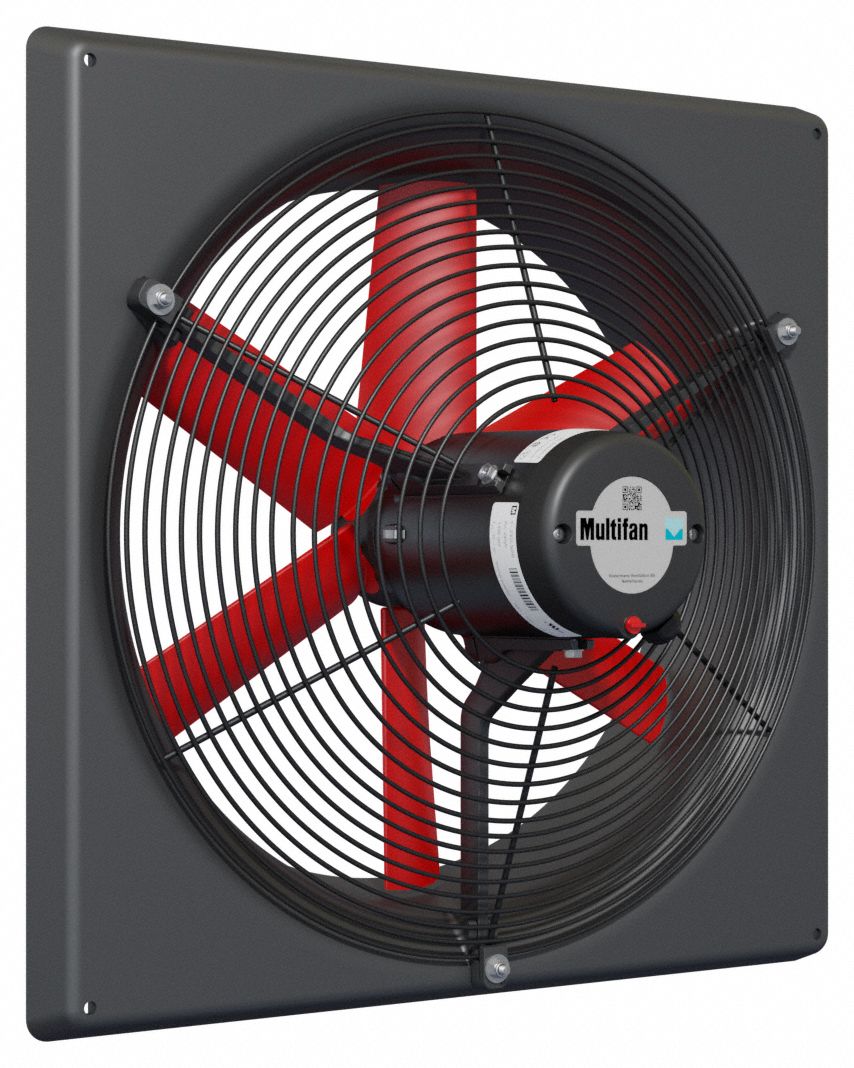

Multifan 3G-OTH-80232 — Technical Specifications
The MULTIFAN Exhaust Fan: Direct Drive (SKU 21A102, MPN V4D45K9M71100) is a corrosion-resistant direct-drive panel exhaust fan with an 18-inch blade, 1/4 hp, and 3,890 cfm. It features a fiberglass frame, cast construction, and a 3-phase, 460V AC motor with Class F insulation and a totally enclosed air-over enclosure. The unit is assembled and includes intake guards.
Technical Specifications
| Parameter | Value |
|---|---|
| AC | 460V |
| Type | 1/4 hp, 3,890 cfm, 3 ph, Totally Enclosed |
| Blade | 18 in |
| Brand | MULTIFAN |
| Assembled | Assembled |
| Guard Type | Intake |
| Motor Type | 3-Phase |
| Frame Material | Fiberglass |
| Motor Enclosure | Totally Enclosed Air Over |
| Enclosure Design | Totally Enclosed Motor |
| Motor Insulation | Class F |
| Number Of Speeds | Variable |
| Nameplate Voltage | 460V AC |
| Guard Type Subheads | With Intake Guards |
| Method Of Construction | Cast |
| Manufacturer Part Number | V4D45K9M71100 |
