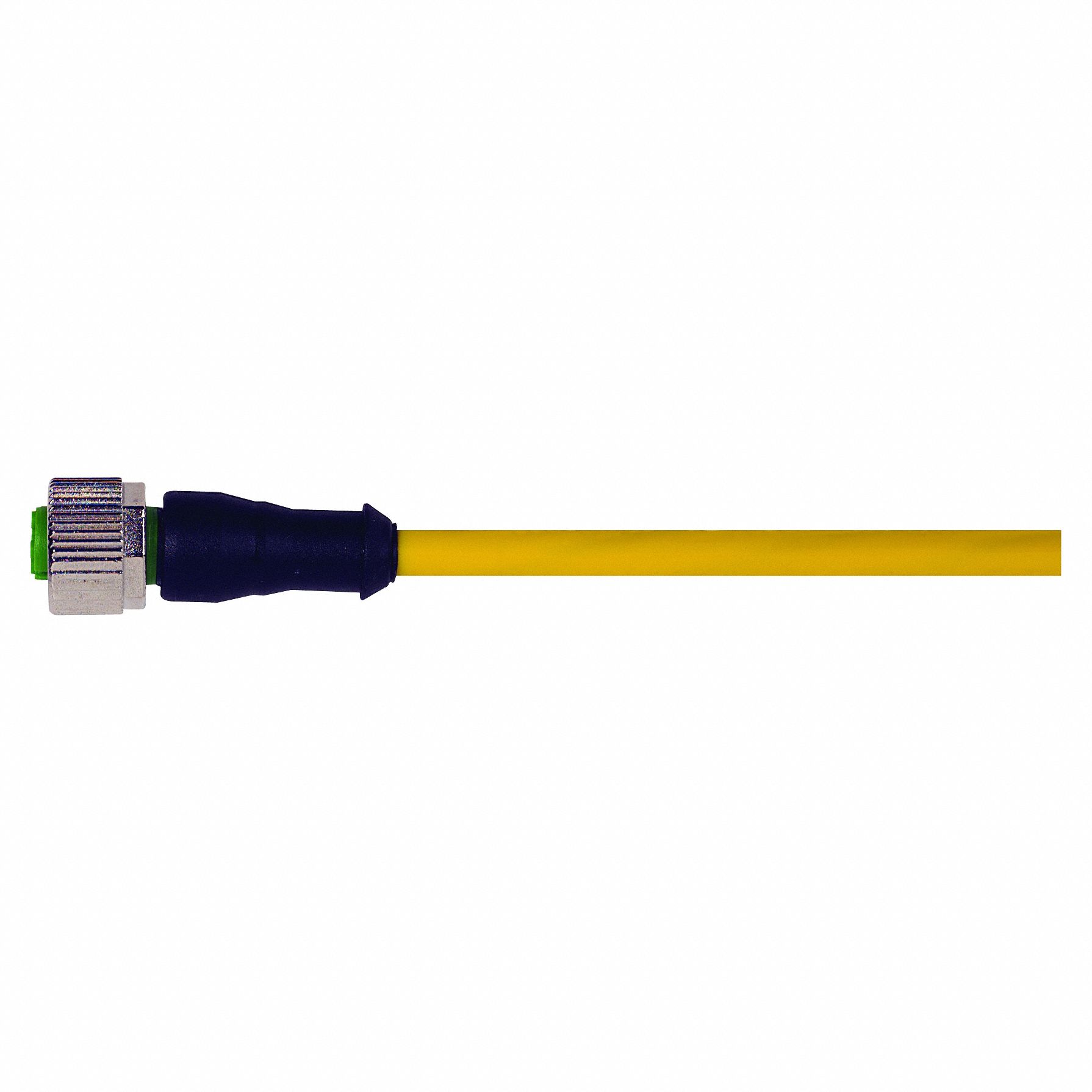

Murrelektronik 3G-OTH-51621 — Technical Specifications

Name: Murrelektronik 3G-OTH-51621 Cordset: M12 Female Straight X Bare Wire, 4 Pins, Yellow, PUR, 5 m Cable Lg, 4 A Max Current (A) (MPN 7000-12221-0340500). Key specifications — Cable Jacket Color: Yellow; End 1 Gender: Female; End 1 Mounting Orientation: Straight; End 2 Connection Type: Bare Wire; IP Rating: IP66K; Brand: MURRELEKTRONIK; Wire Size: 22 AWG; Cable Jacket Material: PUR.
Brand: Murrelektronik

The MURRELEKTRONIK Cordset (SKU 812PX7) is a single-ended cordset with a PUR jacket for twisting applications. It features an M12 female straight connector on one end and bare wire on the other, with 4 pins, 22 AWG wire, a 5 m cable length, a 4 A max current, and an IP66K rating.

View Product & Quote

Technical Specifications

Parameter	Value
Pins	4
Type	Yellow, PUR
Brand	MURRELEKTRONIK
Cable Lg	5 m
IP Rating	IP66K
Wire Size	22 AWG
End 1 Gender	Female
Max Current (A)	4 A
Cable Jacket Color	Yellow
Cable Jacket Material	PUR
End 1 Connection Type	M12
End 2 Connection Type	Bare Wire
Manufacturer Part Number	7000-12221-0340500
End 1 Mounting Orientation	Straight
