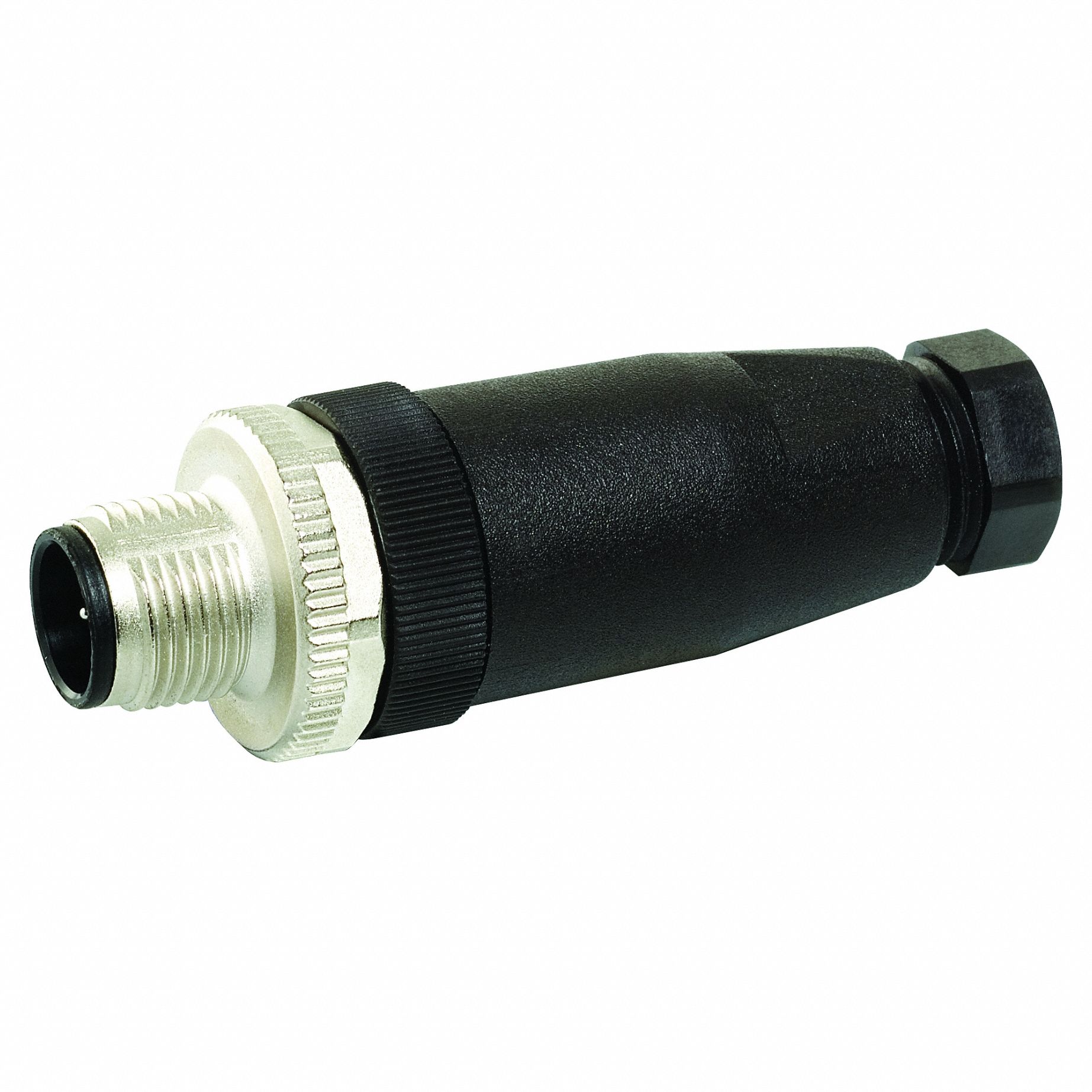

Murrelektronik 3G-OTH-11261 — Technical Specifications
The MURRELEKTRONIK Circular Connector is a field-wireable industrial M12 connector with A coding, designed for signal, low-power, and Gigabit data applications. This straight, 5-pin pin-type connector features screw terminals, a PA housing, and an IP67 rating. It supports a voltage rating of 60V AC/60V DC and uses an M12 thread size with screw mounting.
Technical Specifications
| Parameter | Value |
|---|---|
| Pin | 5 |
| Type | M12 Screw, IP67, Screw Terminals, Straight, PA |
| Brand | MURRELEKTRONIK |
| Coding | A |
| IP Rating | IP67 |
| Thread Size | M12 |
| Wiring Type | Screw Terminals |
| Mounting Style | Screw |
| Voltage Rating | 60V AC/60V DC |
| Connection Type | Screw |
| Housing Material | PA |
| Connector Body Type | Pin |
| Connector Application | A-Coded for Signal, Low-Power, and Gigabit Data |
| Connector Orientation | Straight |
| Manufacturer Part Number | 7000-12721-0000000 |
