Murrelektronik 3G-OTH-10775 — Technical Specifications

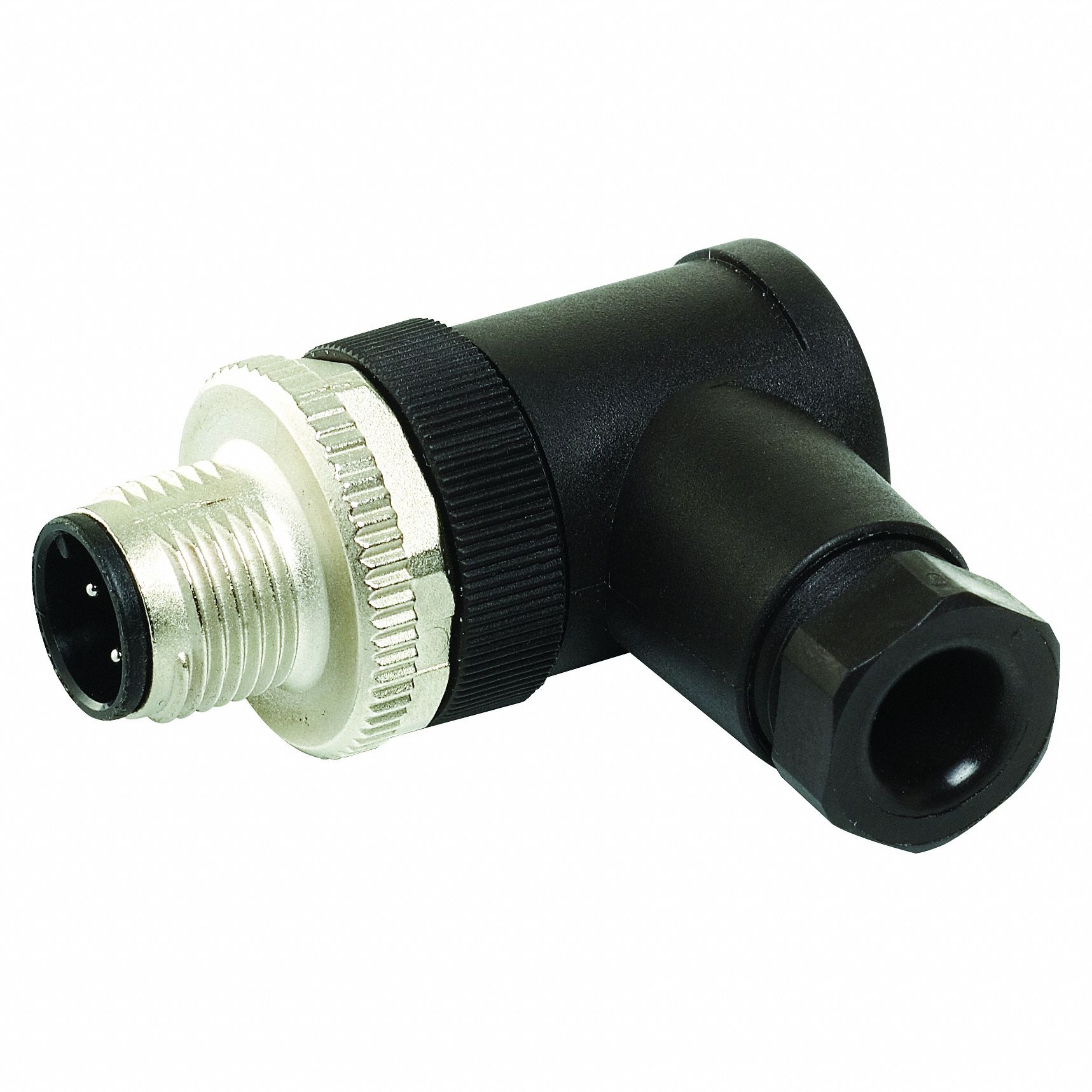

The MURRELEKTRONIK Circular Connector is an A-coded, field-wireable industrial M12 connector with a 90° angle, screw terminals, and a plastic housing. It features a pin-type connector body, M12 thread size, and IP67 rating, rated for 250V AC/250V DC. This connector is designed for signal, low-power, and Gigabit data applications.
Technical Specifications
| Parameter | Value |
|---|---|
| Pin | 4 |
| Type | M12 Screw, IP67, Screw Terminals |
| Angle | 90° |
| Brand | MURRELEKTRONIK |
| Coding | A |
| IP Rating | IP67 |
| Thread Size | M12 |
| Wiring Type | Screw Terminals |
| Mounting Style | Screw |
| Voltage Rating | 250V AC/250V DC |
| Connection Type | Screw |
| Housing Material | Plastic |
| Connector Body Type | Pin |
| Connector Application | A-Coded for Signal, Low-Power, and Gigabit Data |
| Connector Orientation | 90° Angle |
| Manufacturer Part Number | 7000-12821-0000000 |
