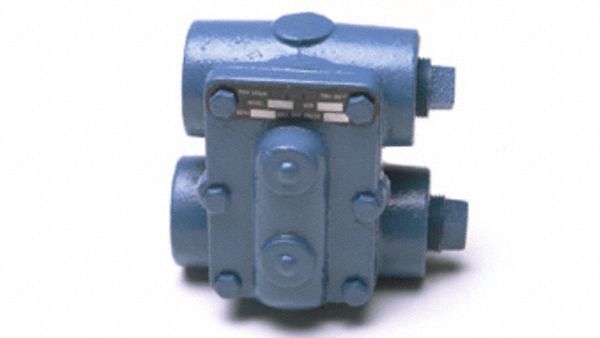

Nicholson 3G-OTH-70754 — Technical Specifications
The NICHOLSON Steam Trap: Cast Iron is a cast iron H-pattern float and thermostatic steam trap from the FTN series. It features a 1 in FNPT connection, a maximum capacity of 1,075 lb/hr, and a maximum pressure of 15 psi with a maximum temperature of 450°F. The float material is cast iron, and the trap is designed for horizontal installation.
Technical Specifications
| Parameter | Value |
|---|---|
| FNPT | 1 in |
| Max. | 15 psi |
| Type | 1,075 lb/hr, H Pattern |
| Brand | NICHOLSON |
| Float Material | Cast Iron |
| Manufacturer Series | FTN |
| Installation Orientation | Horizontal |
| Manufacturer Part Number | FTN-C1E9A |
