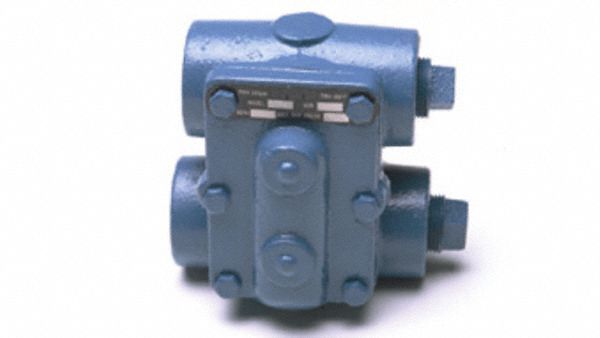

Nicholson 3G-OTH-70905 — Technical Specifications
The NICHOLSON FTN-C1F9A is a cast iron H-pattern float and thermostatic steam trap from the FTN series. It features a 1 1/4 in FNPT connection, a maximum capacity of 2,340 lb/hr, and a maximum pressure of 15 psi with a maximum temperature of 450°F. Designed for horizontal installation, this steam trap uses a cast iron float.
Technical Specifications
| Parameter | Value |
|---|---|
| FNPT | 1 1/4 in |
| Max. | 15 psi |
| Type | 2,340 lb/hr, H Pattern |
| Brand | NICHOLSON |
| Float Material | Cast Iron |
| Manufacturer Series | FTN |
| Installation Orientation | Horizontal |
| Manufacturer Part Number | FTN-C1F9A |
