Nicholson 3G-OTH-71055 — Technical Specifications

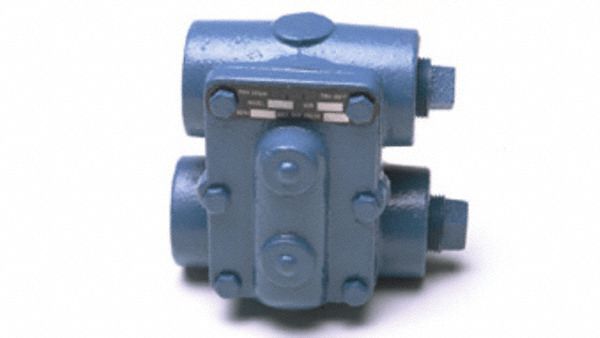

The NICHOLSON FTN-C1H9A is a Cast Iron H-Pattern Float & Thermostatic Steam Trap from the FTN series. It features a 2-inch FNPT connection, a maximum capacity of 10,900 lb/hr, and a maximum operating pressure of 15 psi with a maximum temperature of 450°F. The float material is cast iron, and it is designed for horizontal installation.
Technical Specifications
| Parameter | Value |
|---|---|
| FNPT | 2 in |
| Max. | 15 psi |
| Type | 10,900 lb/hr, H Pattern |
| Brand | NICHOLSON |
| Float Material | Cast Iron |
| Manufacturer Series | FTN |
| Installation Orientation | Horizontal |
| Manufacturer Part Number | FTN-C1H9A |
