Ntn 3G-OTH-102220 — Technical Specifications

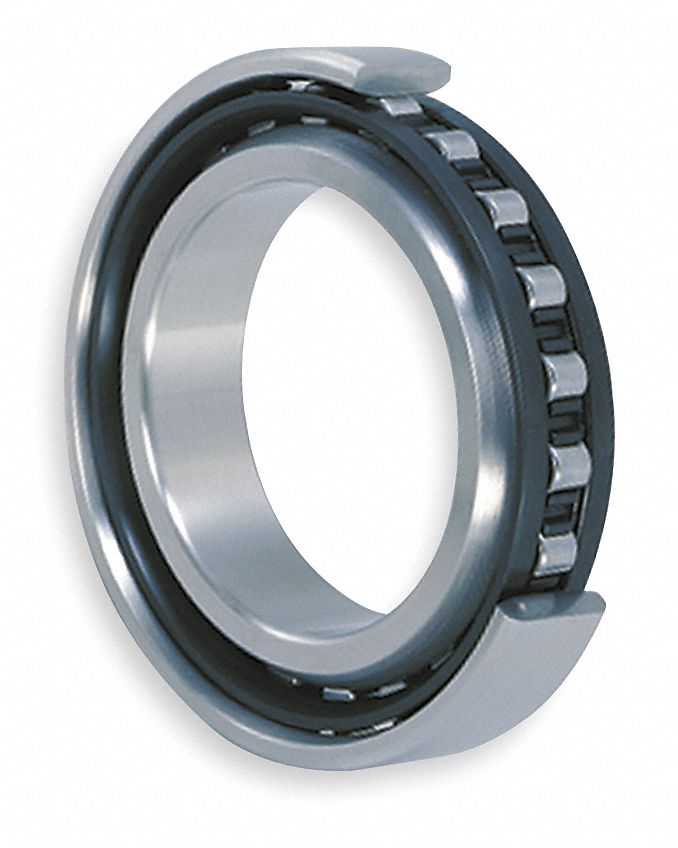

The NTN Cylindrical Roller Bearing: 309 is a high-clearance cylindrical roller bearing from NTN, featuring an NJ design with a 45 mm bore, 100 mm OD, and 25 mm overall width. It is constructed with alloy steel rings and a brass cage, identified by manufacturer part number NJ309EG1C3. This metric bearing is designed for applications requiring high radial load capacity and accommodating axial displacement.
Technical Specifications
| Parameter | Value |
|---|---|
| OD | 100 mm |
| Bore | 45 mm |
| Type | Cylindrical, Brass |
| Brand | NTN |
| Overall Wd | 25 mm |
| Ring Material | Alloy Steel |
| System Of Measurement | Metric |
| Bearing Industry Number | 309 |
| Manufacturer Part Number | NJ309EG1C3 |
| Cylindrical Bearing Design | NJ |
