Ntn 3G-OTH-109614 — Technical Specifications

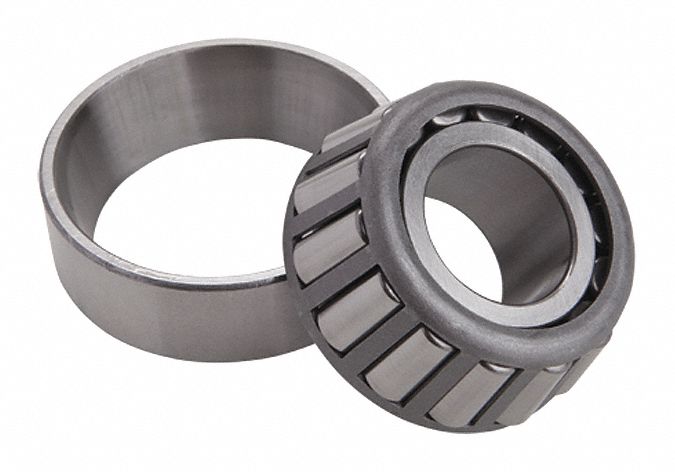

The NTN Tapered Roller Bearing Assembly, model 30211, is a metric bearing with a 55 mm bore, 100 mm OD, 21 mm cone width, and 18 mm cup width. It features a pressed steel cage and carbon steel rings, and is not prelubricated.
Technical Specifications
| Parameter | Value |
|---|---|
| OD | 100 mm |
| Bore | 55 mm |
| Brand | NTN |
| Cup Wd | 18 mm |
| Cone Wd | 21 mm |
| Cage Material | Pressed Steel |
| Ring Material | Carbon Steel |
| Lubricant Material | Not Prelubricated |
| System Of Measurement | Metric |
| Bearing Industry Number | 30211 |
| Manufacturer Part Number | 30211 |
