Ntn 3G-OTH-113119 — Technical Specifications

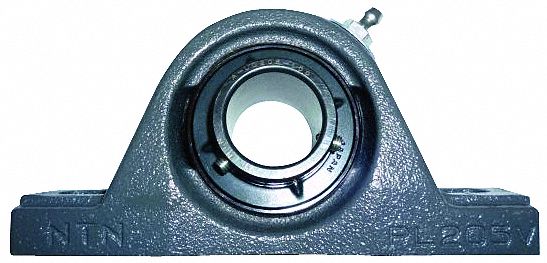

Name: Ntn 3G-OTH-113119 NTN Pillow Block Bearing: 1 7/8 in Bore, Cast Iron, Set Screws, 2 1/4 in Shaft Ht, 4.5 in Overall Ht (MPN UCP-1.7/8M). Key specifications — Brand: NTN; Maximum Speed: 3,100 RPM; Mounting Bolt Size: 5/8 in; System of Measurement: Inch.
Brand: Ntn

The NTN UCP-1.7/8M is a general purpose pillow block ball bearing with a 1 7/8 in bore, constructed from cast iron and featuring set screw locking. This inch-system unit has a maximum speed of 3,100 RPM, a shaft height of 2 1/4 in, an overall height of 4.5 in, and accepts a 5/8 in mounting bolt.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Cast Iron, Set Screws
Brand	NTN
Shaft Ht	2 1/4 in
Overall Ht	4.5 in
Maximum Speed	3,100 RPM
Mounting Bolt Size	5/8 in
System Of Measurement	Inch
Manufacturer Part Number	UCP-1.7/8M
