Ntn 3G-OTH-104211 — Technical Specifications

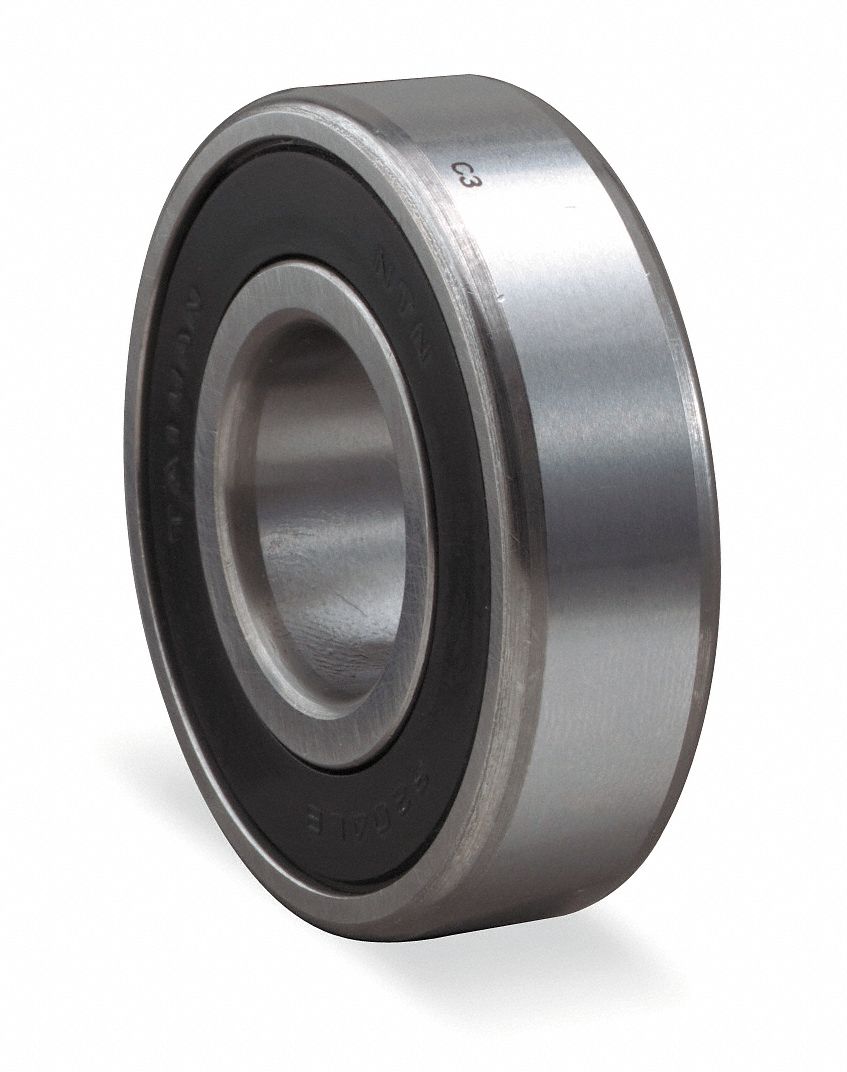

The NTN Radial Ball Bearing, model 6312, is a general purpose radial ball bearing with a metric system of measurement. It features a double-sealed, non-contact seal design, with a 60 mm bore, 130 mm outer diameter, and 31 mm width, identified by the manufacturer part number 6312LLBC3/L627.
Technical Specifications
| Parameter | Value |
|---|---|
| OD | 130 mm |
| Wd | 31 mm |
| Bore | 60 mm |
| Type | Dbl Sealed, Non-Contact Seal |
| System Of Measurement | Metric |
| Bearing Industry Number | 6312 |
| Manufacturer Part Number | 6312LLBC3/L627 |
