Ntn 3G-OTH-104261 — Technical Specifications

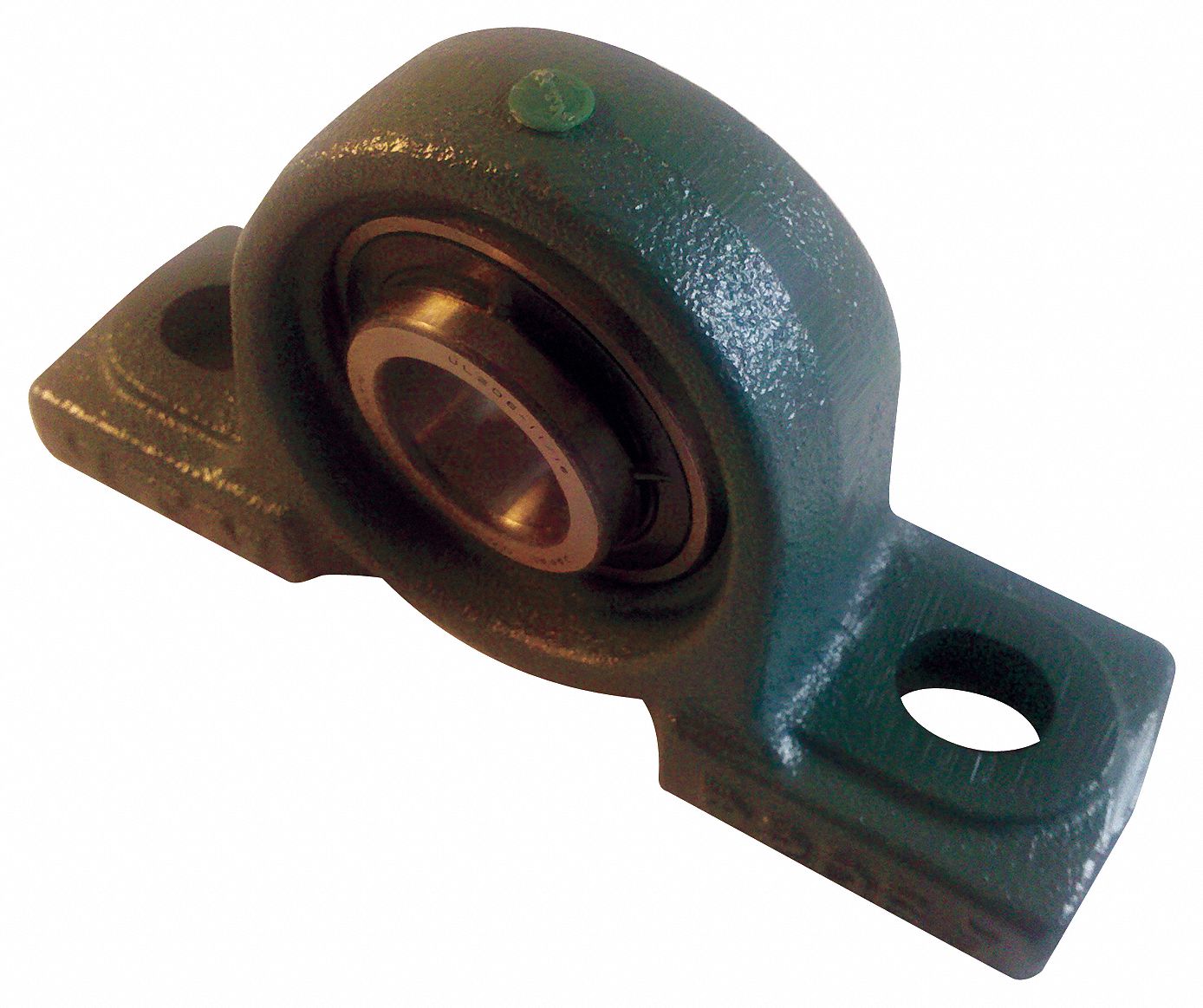

The NTN UCPX05-100D1 is a medium duty pillow block ball bearing with a 1 in bore, constructed from cast iron and featuring set screw locking. This inch-system unit has a 1 47/64 in shaft height, a 6.259 in overall length, and accepts a 1/2 in mounting bolt.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Cast Iron, Set Screws |
| Brand | NTN |
| Shaft Ht | 1 47/64 in |
| Overall Lg | 6.259 in |
| Mounting Bolt Size | 1/2 in |
| System Of Measurement | Inch |
| Manufacturer Part Number | UCPX05-100D1 |
