Ntn 3G-OTH-108241 — Technical Specifications

Name: Ntn 3G-OTH-108241 NTN Pillow Block Bearing: 1 3/4 in Bore, Cast Iron, Eccentric Collar, 2 1/16 in Shaft Ht, 3,500 RPM (MPN UELPL209-112D1W3). Key specifications — Brand: NTN; Maximum Speed: 3,500 RPM; Mounting Bolt Size: 1/2 in; System of Measurement: Inch.
Brand: Ntn

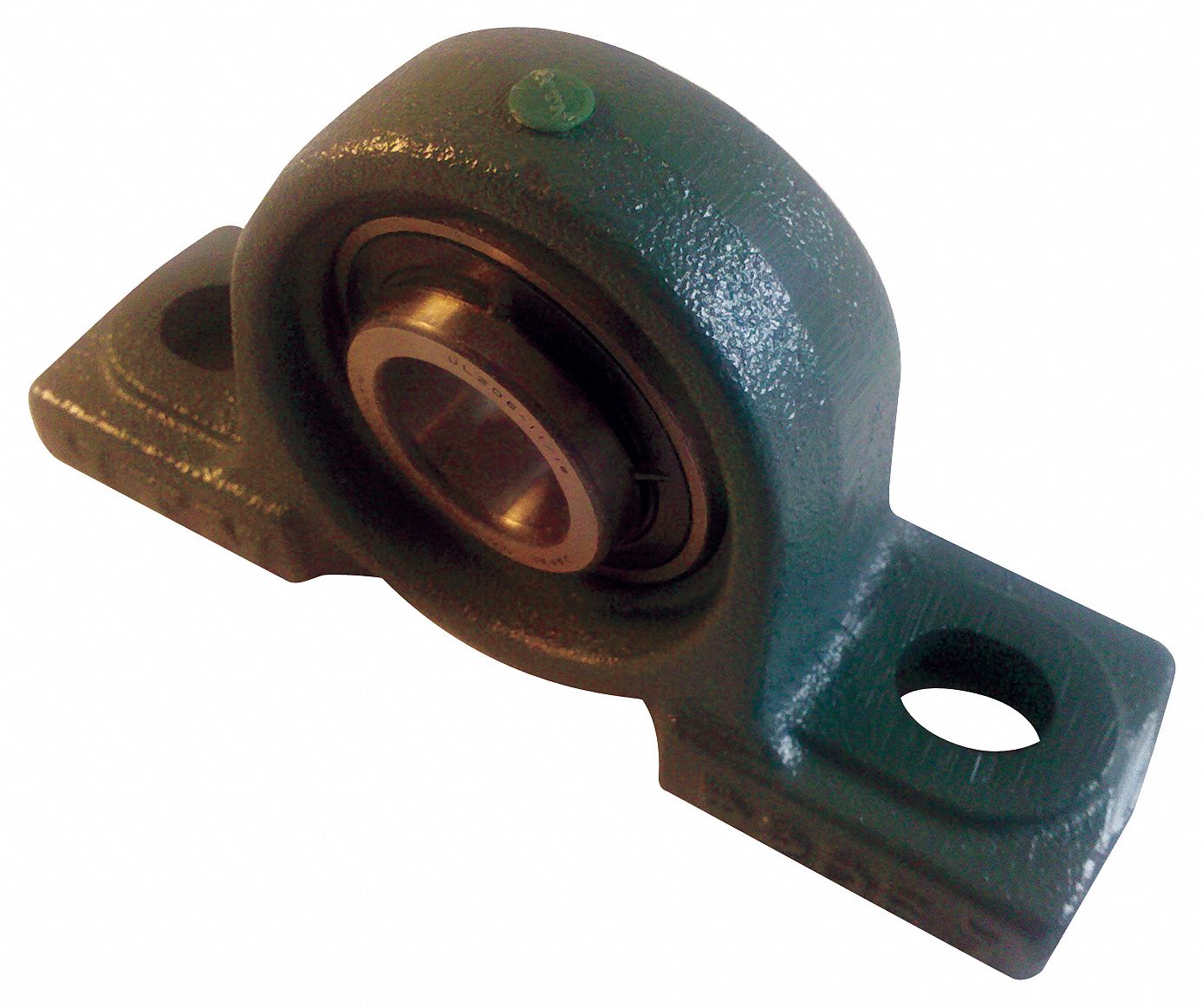

The NTN Pillow Block Bearing is a general purpose pillow block ball bearing with a 1 3/4 in bore, featuring a cast iron housing and an eccentric collar. It has a maximum speed of 3,500 RPM, a shaft height of 2 1/16 in, and a mounting bolt size of 1/2 in, with the manufacturer part number UELPL209-112D1W3.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Cast Iron, Eccentric Collar, 3,500 RPM
Brand	NTN
Shaft Ht	2 1/16 in
Maximum Speed	3,500 RPM
Mounting Bolt Size	1/2 in
System Of Measurement	Inch
Manufacturer Part Number	UELPL209-112D1W3
