Ntn 3G-OTH-116355 — Technical Specifications

Name: Ntn 3G-OTH-116355 NTN Actuator: 112 lbf Rated Load, 50 mm Stroke, 24V DC, 20:1, 0.21 in/sec at Full Load (MPN ND3L-24-20-50-IP65-A155). Key specifications — Gear Ratio: 20:1; Nut Material: Plastic.
Brand: Ntn

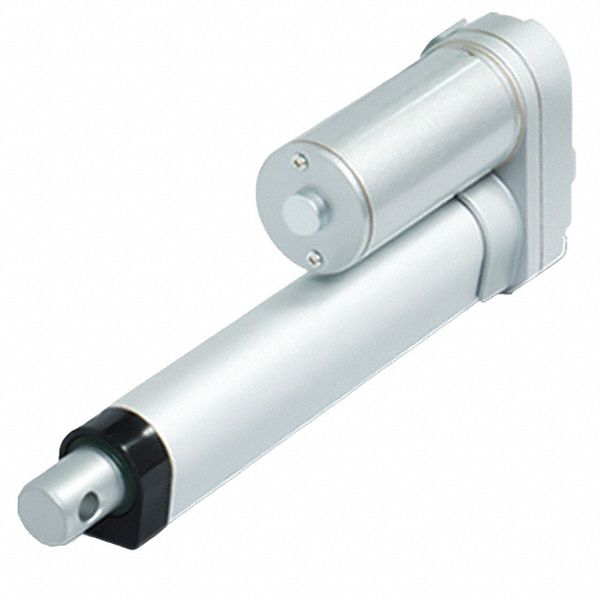

The NTN Actuator (SKU 801VR6, MPN ND3L-24-20-50-IP65-A155) is a linear actuator with a 112 lbf rated load, 50 mm stroke, and 24V DC power. It features a 20:1 gear ratio and a plastic nut material, operating at 0.21 in/sec at full load.

View Product & Quote

Technical Specifications

Parameter	Value
DC	24V
Type	0.21 in/sec at Full Load
Stroke	50 mm
Gear Ratio	20:1
Nut Material	Plastic
Manufacturer Part Number	ND3L-24-20-50-IP65-A155
