Ntn 3G-OTH-117289 — Technical Specifications

Name: Ntn 3G-OTH-117289 NTN Actuator: 112 lbf Rated Load, 300 mm Stroke, 24V DC, 20:1, 0.21 in/sec at Full Load (MPN ND3L-24-20-300-IP65-A408). Key specifications — Gear Ratio: 20:1; Nut Material: Plastic.
Brand: Ntn

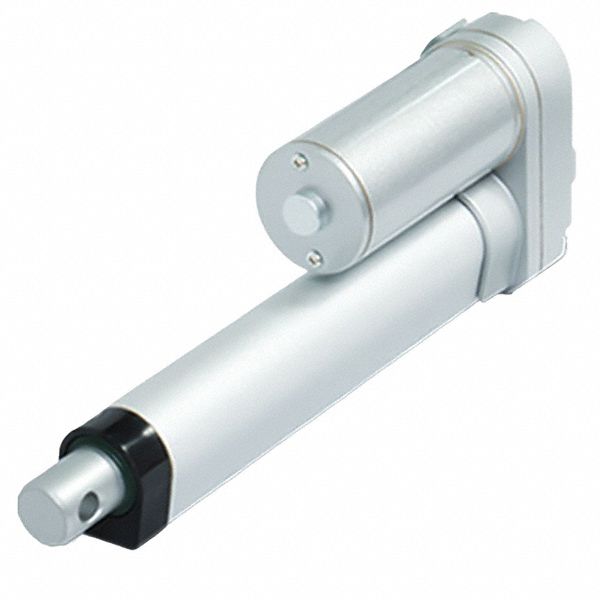

The NTN Actuator (model ND3L-24-20-300-IP65-A408) is a linear actuator with a 112 lbf rated load and 300 mm stroke, operating on 24V DC. It features a 20:1 gear ratio and a plastic nut material, delivering a speed of 0.21 in/sec at full load.

View Product & Quote

Technical Specifications

Parameter	Value
DC	24V
Type	0.21 in/sec at Full Load
Stroke	300 mm
Gear Ratio	20:1
Nut Material	Plastic
Manufacturer Part Number	ND3L-24-20-300-IP65-A408
