Ntn 3G-OTH-117463 — Technical Specifications

Name: Ntn 3G-OTH-117463 NTN Actuator: 225 lbf Rated Load, 250 mm Stroke, 12V DC, 40:1, 0.21 in/sec at Full Load (MPN ND3L-12-40-250-IP65-A358). Key specifications — Gear Ratio: 40:1; Nut Material: Plastic.
Brand: Ntn

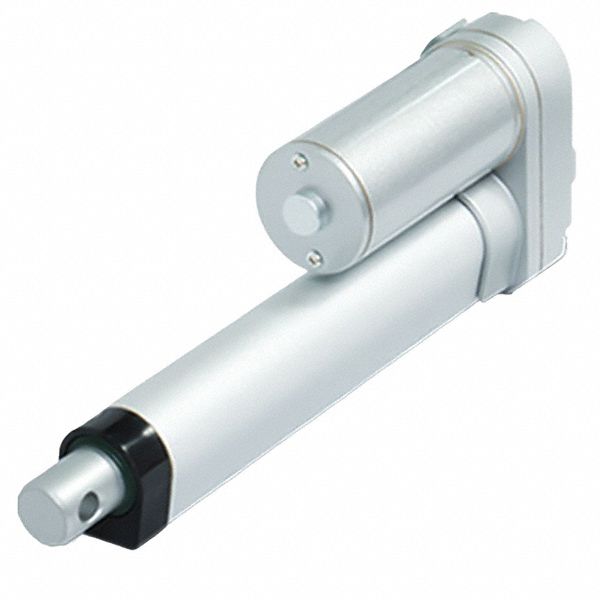

The NTN Actuator (model ND3L-12-40-250-IP65-A358) is a linear actuator with a 225 lbf rated load and 250 mm stroke. It operates on 12V DC with a gear ratio of 40:1 and a full-load speed of 0.21 in/sec. The actuator features a plastic nut material.

View Product & Quote

Technical Specifications

Parameter	Value
DC	12V
Type	0.21 in/sec at Full Load
Stroke	250 mm
Gear Ratio	40:1
Nut Material	Plastic
Manufacturer Part Number	ND3L-12-40-250-IP65-A358
