Ntn 3G-OTH-117112 — Technical Specifications

Name: Ntn 3G-OTH-117112 NTN Actuator: 112 lbf Rated Load, 250 mm Stroke, 24V DC, 20:1, 0.21 in/sec at Full Load (MPN ND3L-24-20-250-IP65-A358). Key specifications — Gear Ratio: 20:1; Nut Material: Plastic.
Brand: Ntn

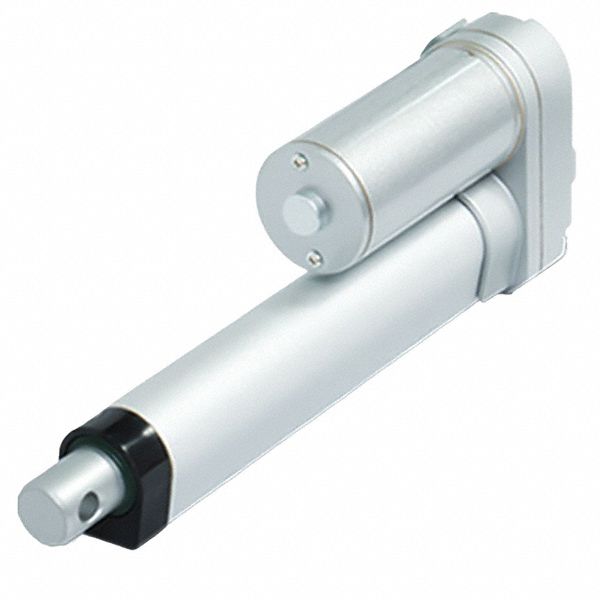

The NTN Actuator (model ND3L-24-20-250-IP65-A358) is a linear actuator with a 112 lbf rated load and a 250 mm stroke. It operates on 24V DC with a gear ratio of 20:1 and a speed of 0.21 in/sec at full load. The actuator features a plastic nut material.

View Product & Quote

Technical Specifications

Parameter	Value
DC	24V
Type	0.21 in/sec at Full Load
Stroke	250 mm
Gear Ratio	20:1
Nut Material	Plastic
Manufacturer Part Number	ND3L-24-20-250-IP65-A358
