Ntn 3G-OTH-112499 — Technical Specifications

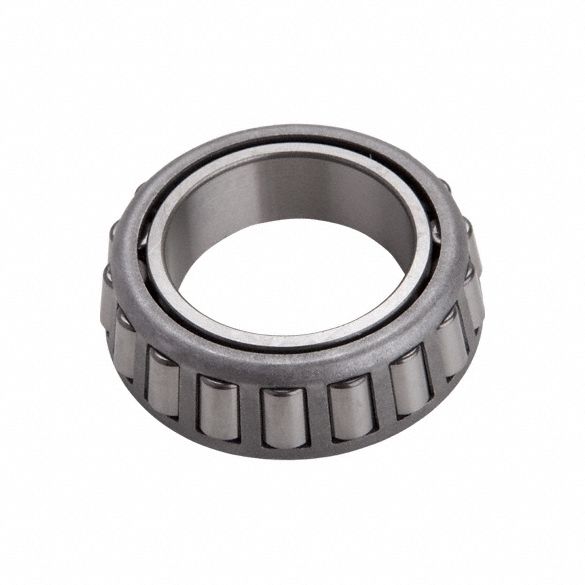

The NTN Tapered Roller Bearing Cone, model LM742745, is an inch-system carbon steel cone with an 8 3/8 in bore, 10.47 in OD, and 1.812 in cone width. It is designed for use with the compatible cup LM742710.
Technical Specifications
| Parameter | Value |
|---|---|
| OD | 10.47 in |
| Bore | 8 3/8 in |
| Type | LM742745 |
| Brand | NTN |
| Cone Wd | 1.812 in |
| Ring Material | Carbon Steel |
| System Of Measurement | Inch |
| Bearing Industry Number | LM742745 |
| Manufacturer Part Number | LM742745 |
| Compatible Cup Manufacturer Part Number | LM742710 |
