Ntn 3G-OTH-105175 — Technical Specifications

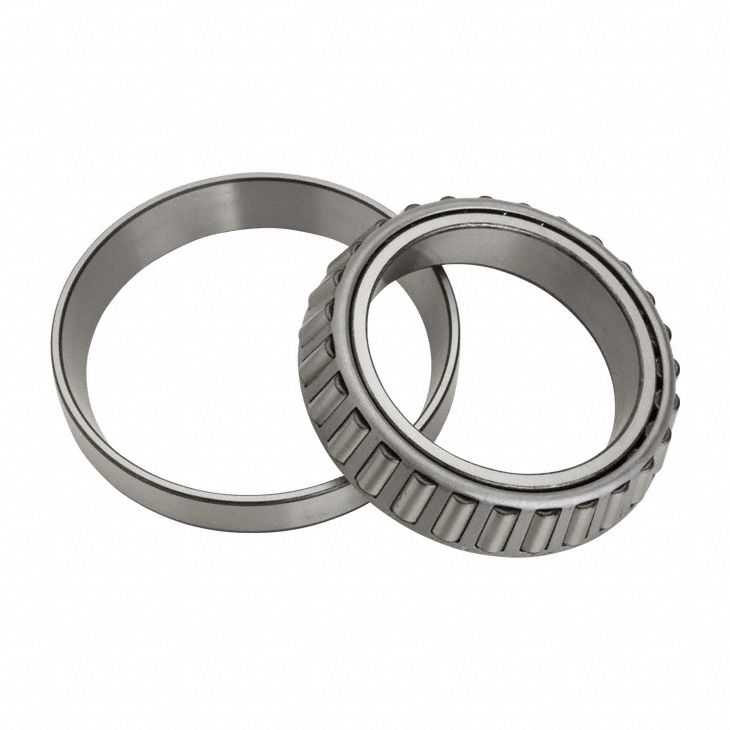

The NTN Tapered Roller Bearing Assembly: 33214 (SKU 805Z62) is a metric tapered roller bearing assembly with a 70 mm bore, 125 mm OD, 41 mm cone width, and 32 mm cup width. It features a carbon steel ring and a pressed steel cage, identified by manufacturer part number 33214U and bearing industry number 33214.
Technical Specifications
| Parameter | Value |
|---|---|
| OD | 125 mm |
| Bore | 70 mm |
| Brand | NTN |
| Cup Wd | 32 mm |
| Cone Wd | 41 mm |
| Cage Material | Pressed Steel |
| Ring Material | Carbon Steel |
| System Of Measurement | Metric |
| Bearing Industry Number | 33214 |
| Manufacturer Part Number | 33214U |
