Ntn 3G-OTH-109573 — Technical Specifications

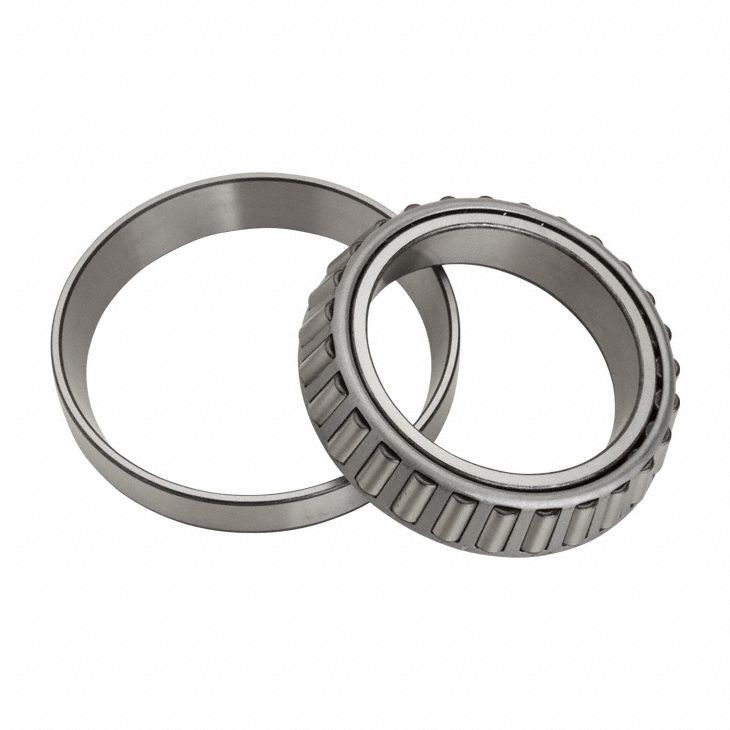

The NTN 740/742 Tapered Roller Bearing Assembly is an inch-system bearing with a 3 3/16 in bore, 5 29/32 in OD, and 1.837 in cone width. It features a carbon steel ring and a pressed steel cage. This assembly is identified by the bearing industry number 740/742 and manufacturer part number 740/742.
Technical Specifications
| Parameter | Value |
|---|---|
| OD | 5 29/32 in |
| Bore | 3 3/16 in |
| Brand | NTN |
| Cone Wd | 1.837 in |
| Cage Material | Pressed Steel |
| Ring Material | Carbon Steel |
| System Of Measurement | Inch |
| Bearing Industry Number | 740/742 |
| Manufacturer Part Number | 740/742 |
