Nvent Erico 3G-OTH-23167 — Technical Specifications

Name: Nvent Erico 3G-OTH-23167 NVENT ERICO Surge Protection Device: Single Phase, 240V AC, 1000V (L-G, L-N, N-G), 275 V AC, Metal (MPN TDX100C240). Key specifications — Voltage: 240V AC; Includes: Voltage Free Contact; Max. Continuing Operating Voltage: 275 V AC; Voltage Protection Rating: 1000V (L-G, L-N, N-G); Enclosure Material: Metal; Max. Surge Current per Mode: 100kA; Brand: NVENT ERICO.
Brand: Nvent Erico

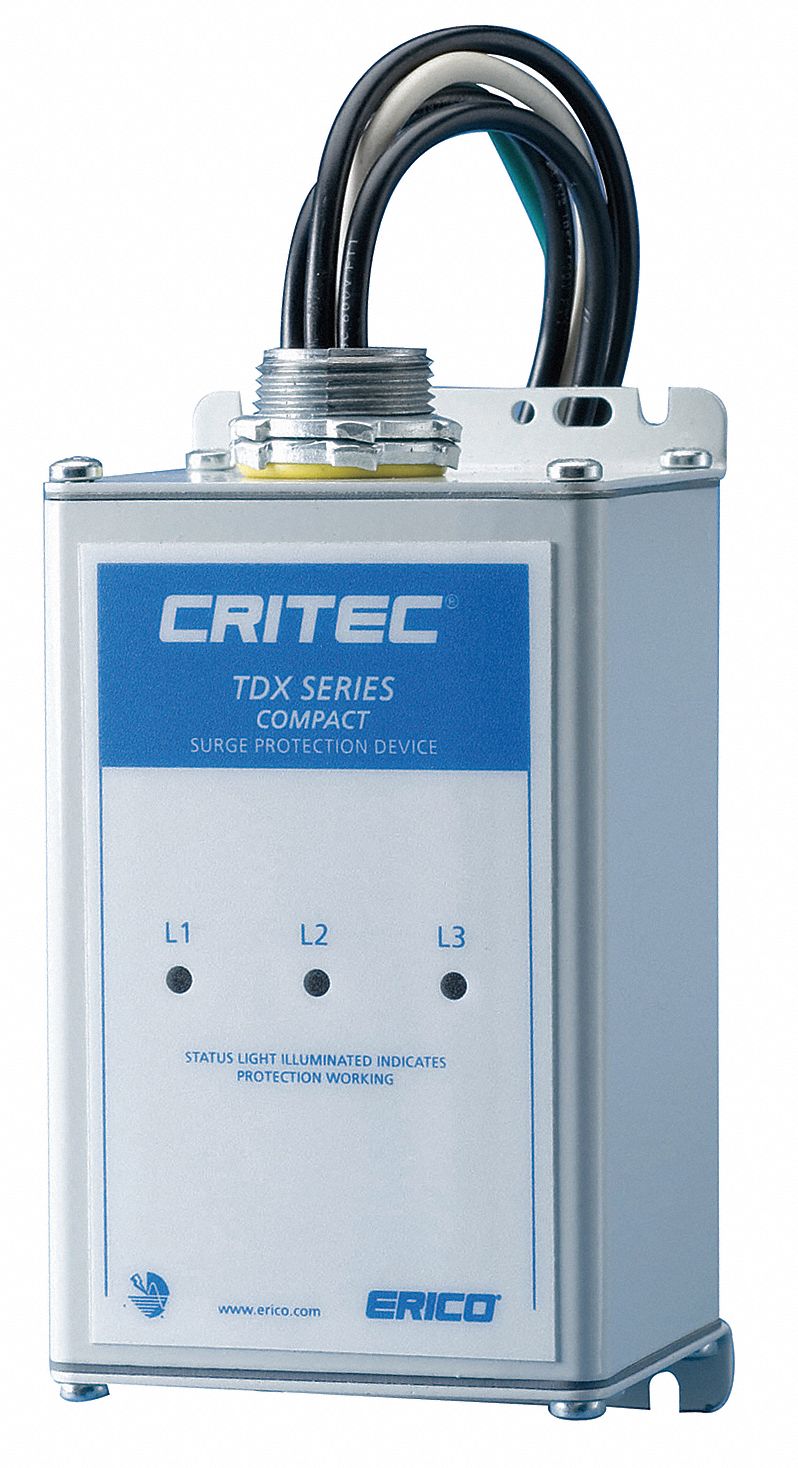

The NVENT ERICO TDX100C240 is a single-phase, chase-nipple external-mount surge protection device (SPD) with a metal enclosure. It operates at 240V AC, has a maximum continuing operating voltage of 275 V AC, and provides a voltage protection rating of 1000V (L-G, L-N, N-G). The SPD includes a voltage-free contact and supports a maximum surge current per mode of 100kA.

View Product & Quote

Technical Specifications

Parameter	Value
AC	240V
Type	1000V (L-G, L-N, N-G), Metal
Brand	NVENT ERICO
Voltage	240V AC
Includes	Voltage Free Contact
Enclosure Material	Metal
Manufacturer Part Number	TDX100C240
Voltage Protection Rating	1000V (L-G, L-N, N-G)
Max. Surge Current Per Mode	100kA
Max. Continuing Operating Voltage	275 V AC
