Omron 3G-OTH-29914 — Technical Specifications

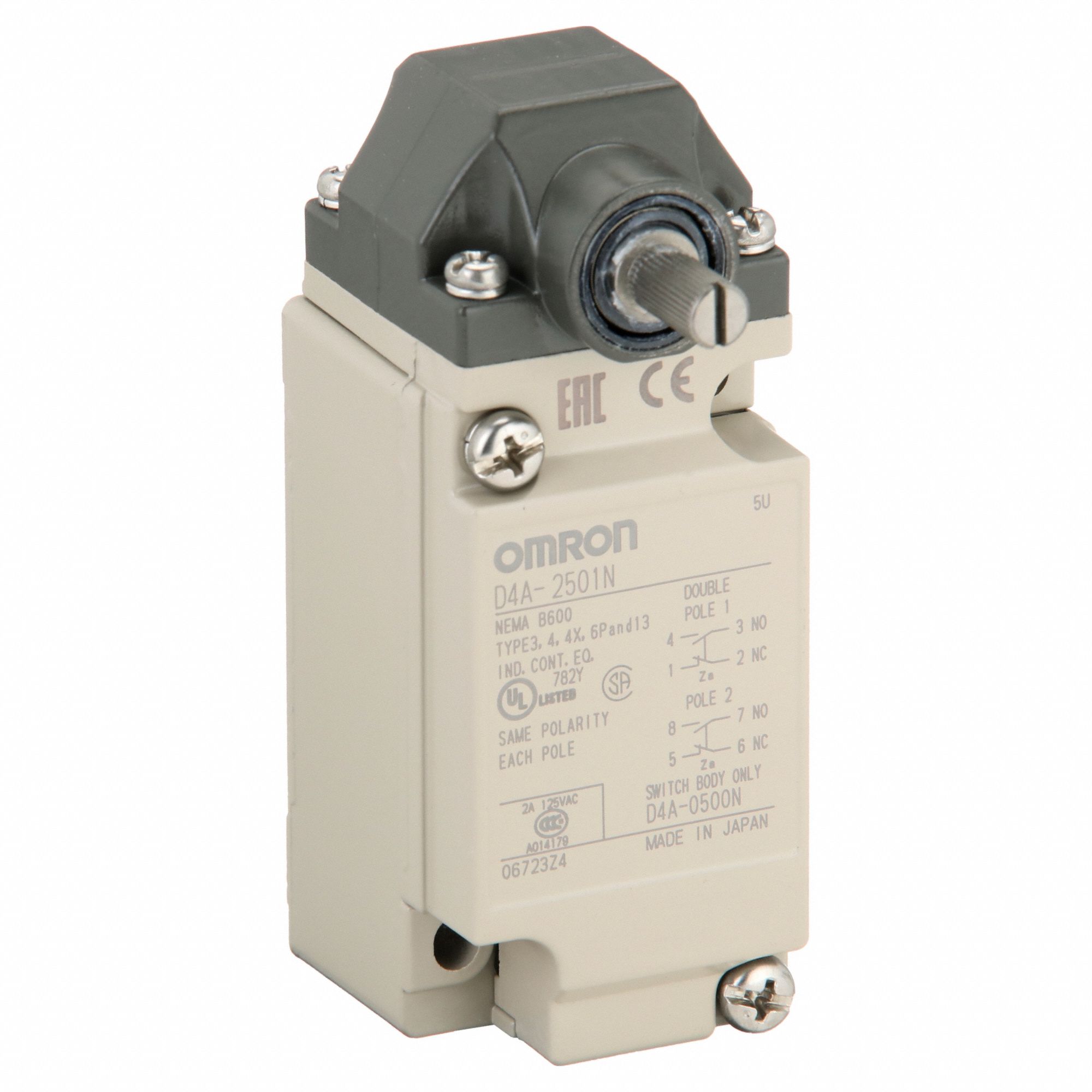

The OMRON Plug-In Limit Switch (SKU 2CLR9, MPN D4A2501N) is a rotary-motion limit switch from the D4A Series with a Roller Lever Plunger actuator. It features a momentary action, DPDT simultaneous operation contact form, and a metallic body style X. Specified travel angles include 12° pretravel, 70° overtravel, 4° differential travel, and 85° total travel.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Metallic, Momentary, Plug-In, D4A, Screw Terminals |
| Brand | OMRON |
| Action | Momentary |
| Series | D4A |
| Pretravel | 12° |
| Body Style | X |
| Overtravel | 70° |
| Contact Form | DPDT - Simultaneous Operation |
| Total Travel | 85° |
| Actuator Style | Roller Lever Plunger |
| Differential Travel | 4° |
| Manufacturer Part Number | D4A2501N |
