Omron 3G-OTH-33342 — Technical Specifications

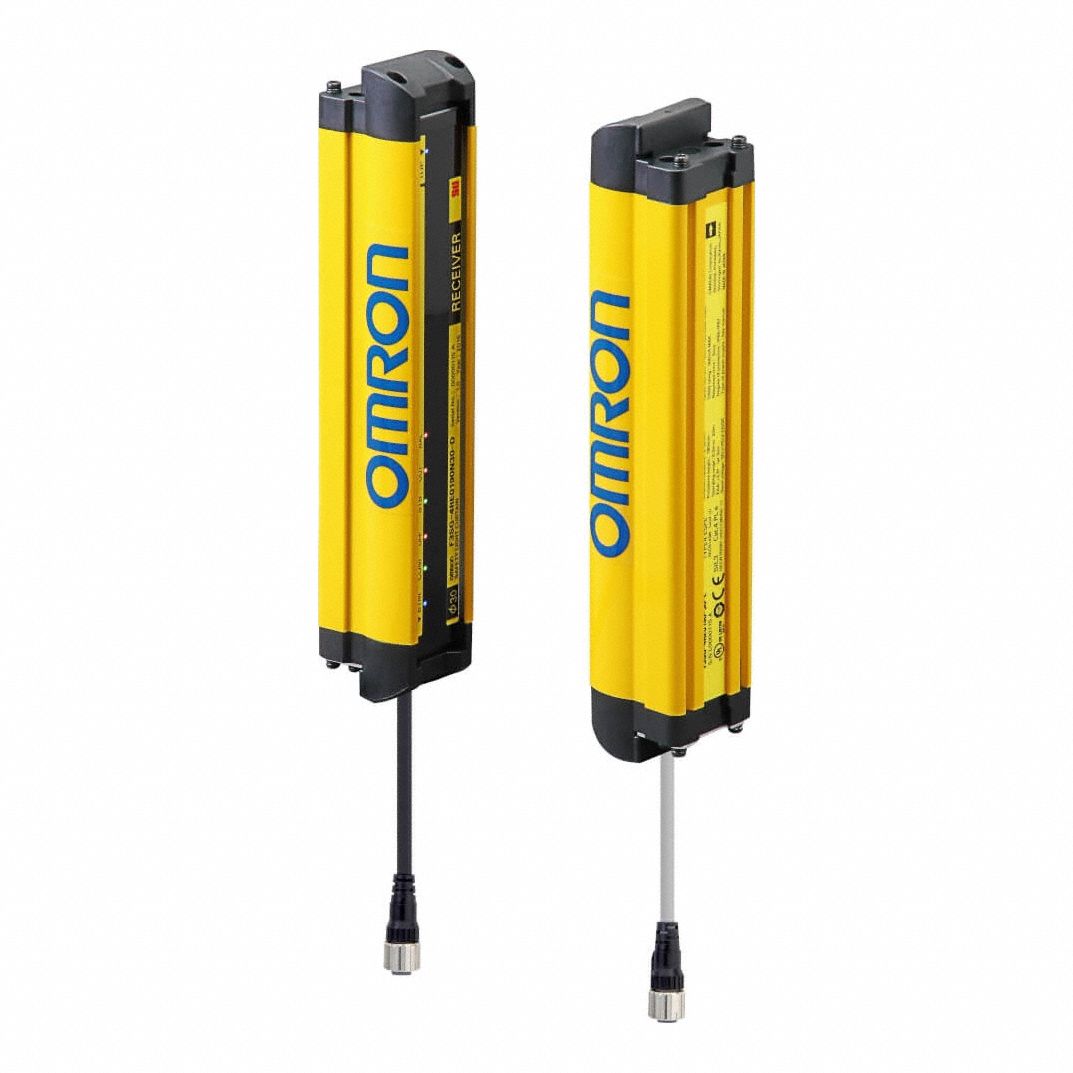

The OMRON F3SG4RE0430P30 is a safety light curtain for finger detection, operating on 24V DC with a 430 mm protected height and 10 mm beam spacing across 20 beams. It uses 870 nm IR LED light and provides safety outputs rated at 300 mA @ 24V DC, with M12 electrical connections for both receiver and transmitter.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | M12 |
| Beams | 20 |
| Brand | OMRON |
| Spacing | 10 mm |
| Protected Ht | 430 mm |
| Type Of Light | 870 nm IR LED |
| AC Voltage Rating | Not Rated |
| DC Voltage Rating | 24V DC |
| Safety Output Ratings | 300 mA @ 24V DC |
| Manufacturer Part Number | F3SG4RE0430P30 |
| Receiver Electrical Connection | M12 |
| Transmitter Electrical Connection | M12 |
