Omron 3G-OTH-33484 — Technical Specifications

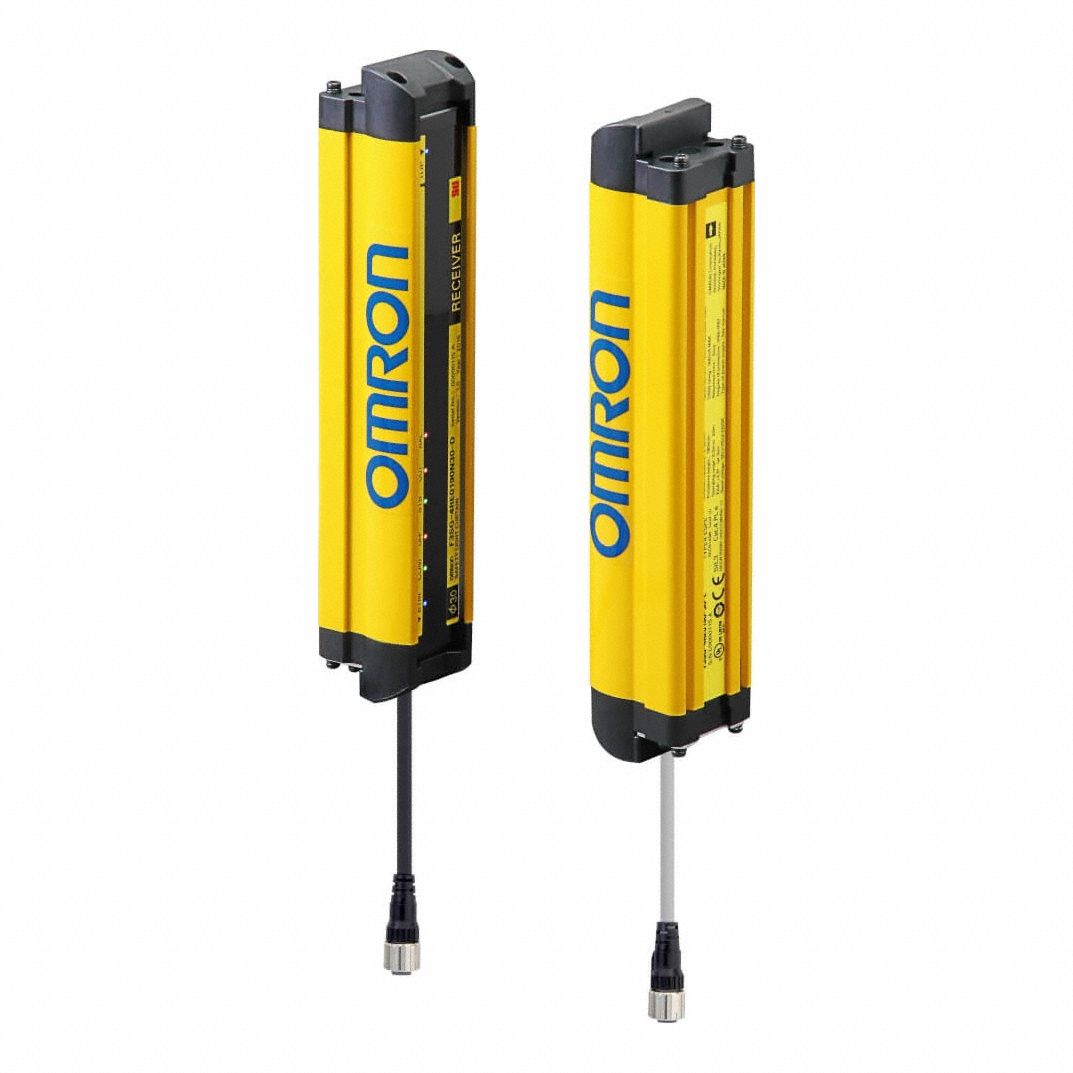

The OMRON F3SG4RE0640P14 is a safety light curtain for finger detection, operating on 24V DC with a 640 mm protected height and 10 mm beam spacing across 63 beams. It uses 870 nm IR LED light and features M12 electrical connections for both receiver and transmitter. Safety output ratings are 300 mA at 24V DC, and it is not rated for AC voltage.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | M12 |
| Beams | 63 |
| Brand | OMRON |
| Spacing | 10 mm |
| Protected Ht | 640 mm |
| Type Of Light | 870 nm IR LED |
| AC Voltage Rating | Not Rated |
| DC Voltage Rating | 24V DC |
| Safety Output Ratings | 300 mA @ 24V DC |
| Manufacturer Part Number | F3SG4RE0640P14 |
| Receiver Electrical Connection | M12 |
| Transmitter Electrical Connection | M12 |
