Omron 3G-OTH-33388 — Technical Specifications

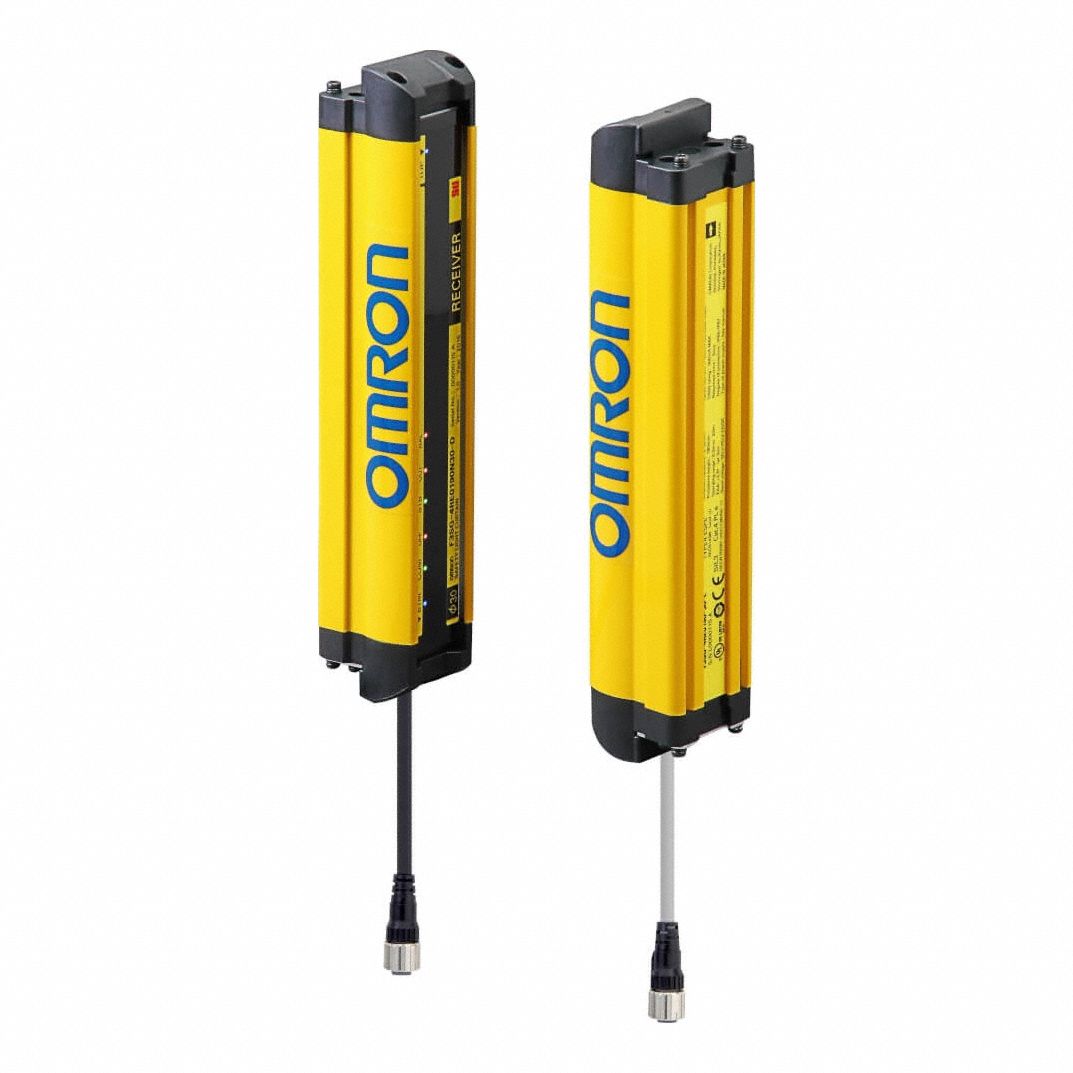

The OMRON F3SG4RE0750P30 is a 24V DC safety light curtain for finger detection, featuring 36 beams with 10 mm spacing and a 750 mm protected height. It uses 870 nm IR LED light and provides safety outputs rated at 300 mA @ 24V DC. Both the receiver and transmitter use M12 electrical connections.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | M12 |
| Beams | 36 |
| Brand | OMRON |
| Spacing | 10 mm |
| Protected Ht | 750 mm |
| Type Of Light | 870 nm IR LED |
| AC Voltage Rating | Not Rated |
| DC Voltage Rating | 24V DC |
| Safety Output Ratings | 300 mA @ 24V DC |
| Manufacturer Part Number | F3SG4RE0750P30 |
| Receiver Electrical Connection | M12 |
| Transmitter Electrical Connection | M12 |
