Omron 3G-OTH-38247 — Technical Specifications

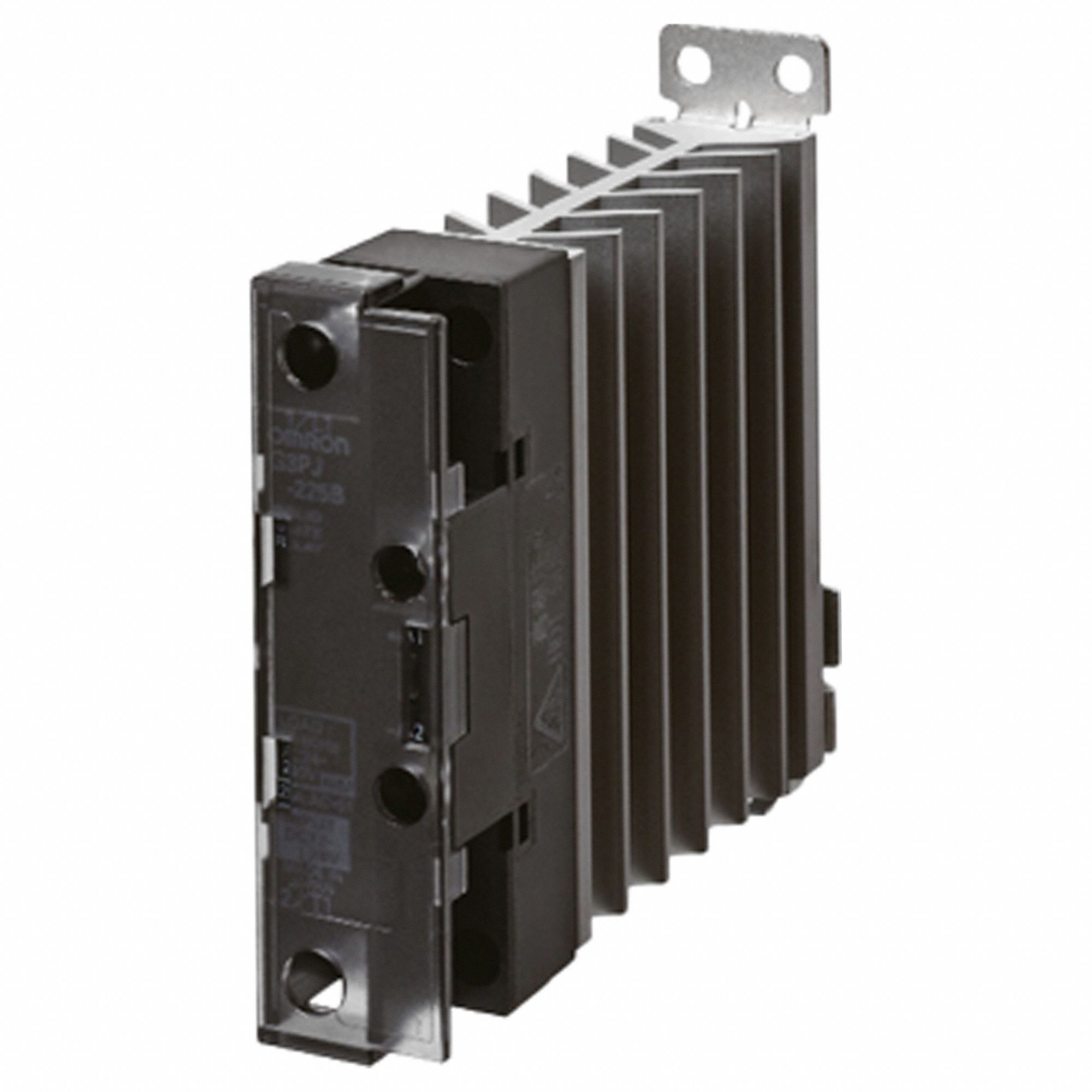

The OMRON Solid State Relay (MPN G3PJ-225B DC12-24) is a combination DIN-rail and surface-mounted relay with a phototriac AC output. It accepts a DC input voltage of 9.6 to 30V DC at 7 mA and switches an AC output voltage of 19 to 264V AC with a maximum output current of 27 A. The unit features screw electrical connections and is designed for DIN rail or screw mounting.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Phototriac, AC Output |
| Brand | OMRON |
| Current Type | DC |
| Input Current | 7 mA |
| Input Voltage | 9.6 to 30V DC |
| Mounting Style | DIN Rail/Screw |
| Output Voltage | 19 to 264V AC |
| Max Output Current | 27 A |
| Voltage/Current Type | AC Output |
| Electrical Connection | Screw |
| Manufacturer Part Number | G3PJ-225B DC12-24 |
