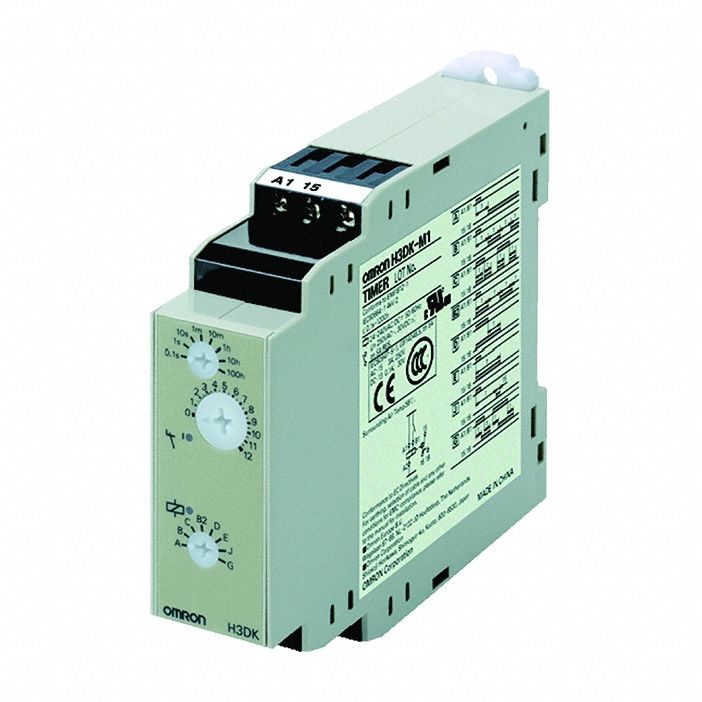

Omron 3G-OTH-38434 — Technical Specifications

Name: Omron 3G-OTH-38434 OMRON Timer: DIN-Rail Mounted, 24 to 240V AC/DC, 0.1 A, 6 Pins/Terminals, 0.1 sec – 1,200 hr (MPN H3DK-F AC/DC24-240). Key specifications — Contact Rating (AC): 5 A @ 250V (Resistive Load); Contact Rating (DC): 10.00 mA @ 5V; Delay Function: Flicker On Start; Input Voltage: 24 to 240V AC/DC; Brand: OMRON.
Brand: Omron

The OMRON H3DK-F AC/DC24-240 is a DIN-rail mounted timer relay with a Flicker On Start delay function. It accepts a 24 to 240V AC/DC input and offers a contact rating of 5 A at 250V AC (resistive load) and 10.00 mA at 5V DC. The timer has a time range of 0.1 sec to 1,200 hr and features 6 pins/terminals.

View Product & Quote

Technical Specifications

Parameter	Value
Type	0.1 A, 0.1 sec – 1,200 hr
AC/DC	24 to 240V
Brand	OMRON
Input Voltage	24 to 240V AC/DC
Delay Function	Flicker On Start
Pins/Terminals	6
Contact Rating (AC)	5 A @ 250V (Resistive Load)
Contact Rating (DC)	10.00 mA @ 5V
Manufacturer Part Number	H3DK-F AC/DC24-240
