Omron 3G-OTH-38469 — Technical Specifications

Name: Omron 3G-OTH-38469 OMRON Timer: DIN-Rail Mounted, 24 to 240V AC/DC, 5 A, 6 Pins/Terminals, 0.1 sec – 1,200 hr (MPN H3DK-S1 AC/DC24-240). Key specifications — Contact Rating (AC): 5 A @ 250V (Resistive Load); Contact Rating (DC): 10.00 mA @ 5V; Delay Function: Interval; Input Voltage: 24 to 240V AC/DC; Brand: OMRON.
Brand: Omron

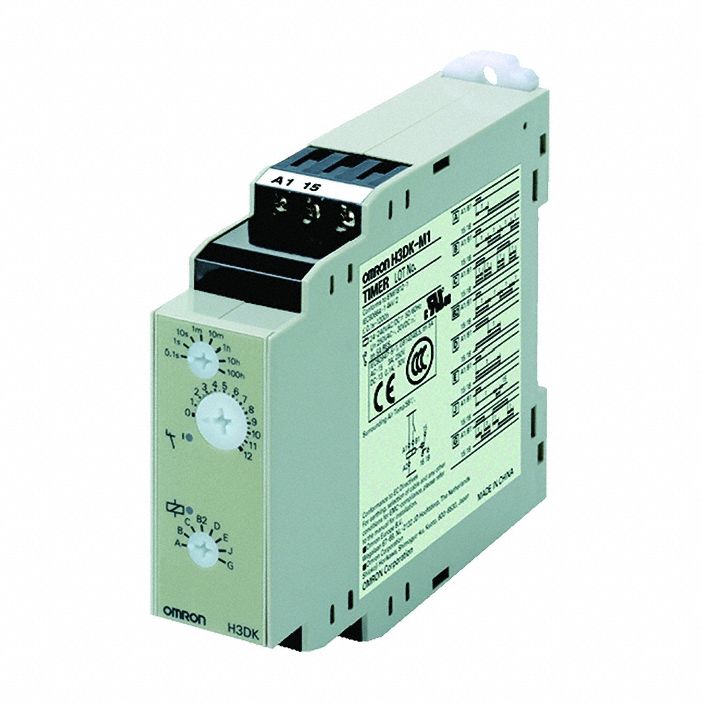

The OMRON H3DK-S1 AC/DC24-240 is a DIN-Rail Mounted Timer Relay with an Interval delay function. It accepts a 24 to 240V AC/DC input and offers a contact rating of 5 A @ 250V (resistive load) for AC and 10.00 mA @ 5V for DC. This 6-pin/terminal unit provides a timing range from 0.1 second to 1,200 hours.

View Product & Quote

Technical Specifications

Parameter	Value
Type	5 A, 0.1 sec – 1,200 hr
AC/DC	24 to 240V
Brand	OMRON
Input Voltage	24 to 240V AC/DC
Delay Function	Interval
Pins/Terminals	6
Contact Rating (AC)	5 A @ 250V (Resistive Load)
Contact Rating (DC)	10.00 mA @ 5V
Manufacturer Part Number	H3DK-S1 AC/DC24-240
