Patlite 3G-OTH-41264 — Technical Specifications

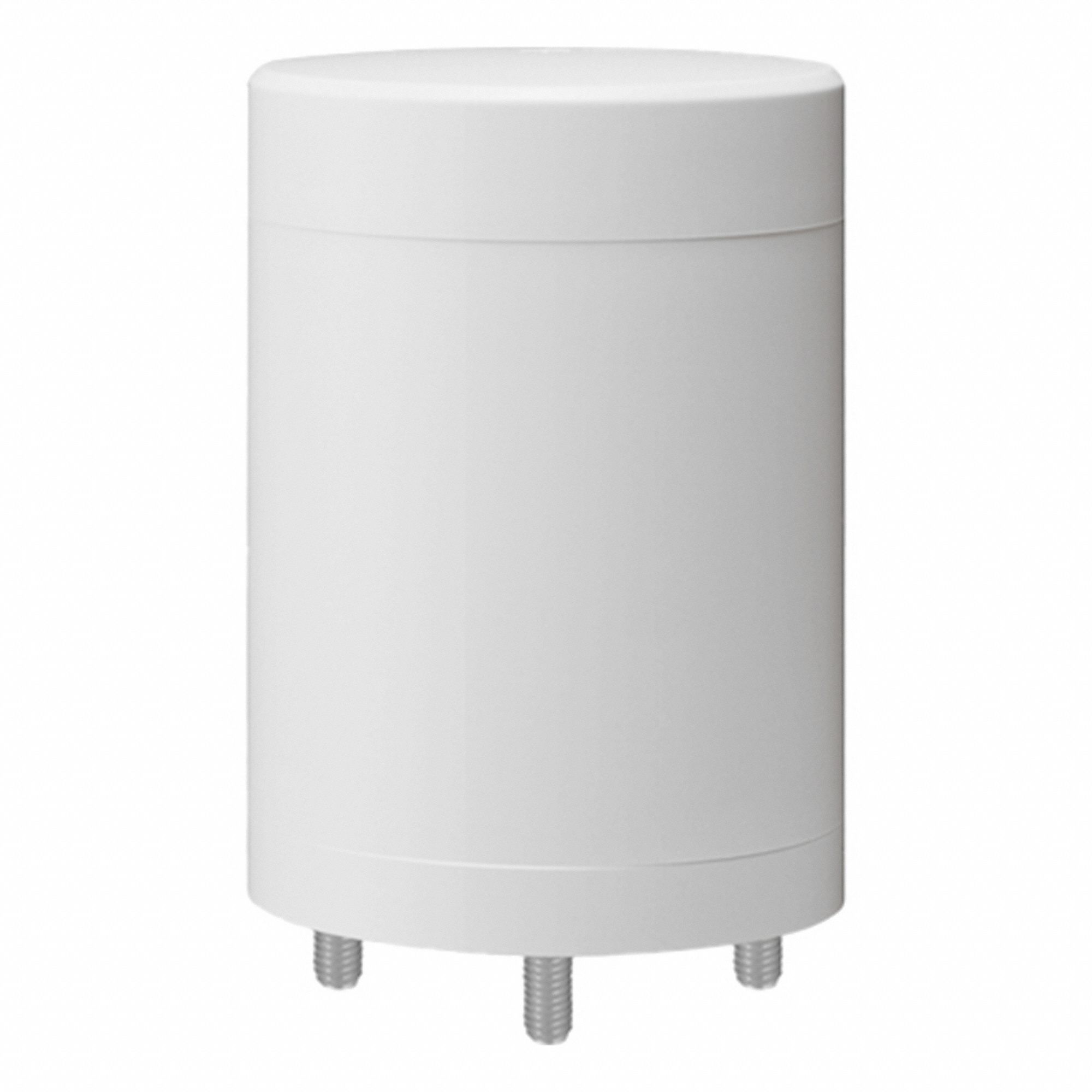

The PATLITE Tower Light Base (SKU 827AH6, Mfr. Part LR7-02WTNW) is a threaded mount for modular tower lights, compatible with the LR7 series. It includes a terminal block for connection and features an Off White housing with an IP65 (IEC 60529) / NEMA TYPE 4X,13 rating.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | For LR7, LR7-02WTNW |
| Brand | PATLITE |
| Includes | Terminal block |
| IP Rating | IP65(IEC 60529) / NEMA TYPE 4X,13 |
| Overall Ht | 3 7/8 in |
| Housing Color | Off White |
| Connection Type | Terminal Block |
| Mounting Location | Threaded Mount |
| Compatible With Series | LR7 |
| Manufacturer Part Number | LR7-02WTNW |
