Pcs 3G-OTH-227433 — Technical Specifications

Name: Pcs 3G-OTH-227433 PCS Step Ejector Pin: Step Pin, Nitrided, Steel, 1 mm Nom. Dia., 150 mm Overall Lg, 4 mm Head Dia (MPN JMH2-150-1.0-50). Key specifications — attr1132749: +2.0/-0.0 mm; attr1110848: PCS; attr1132750: +0.005/-0.000 mm; attr1132753: 0.3 mm.
Brand: Pcs

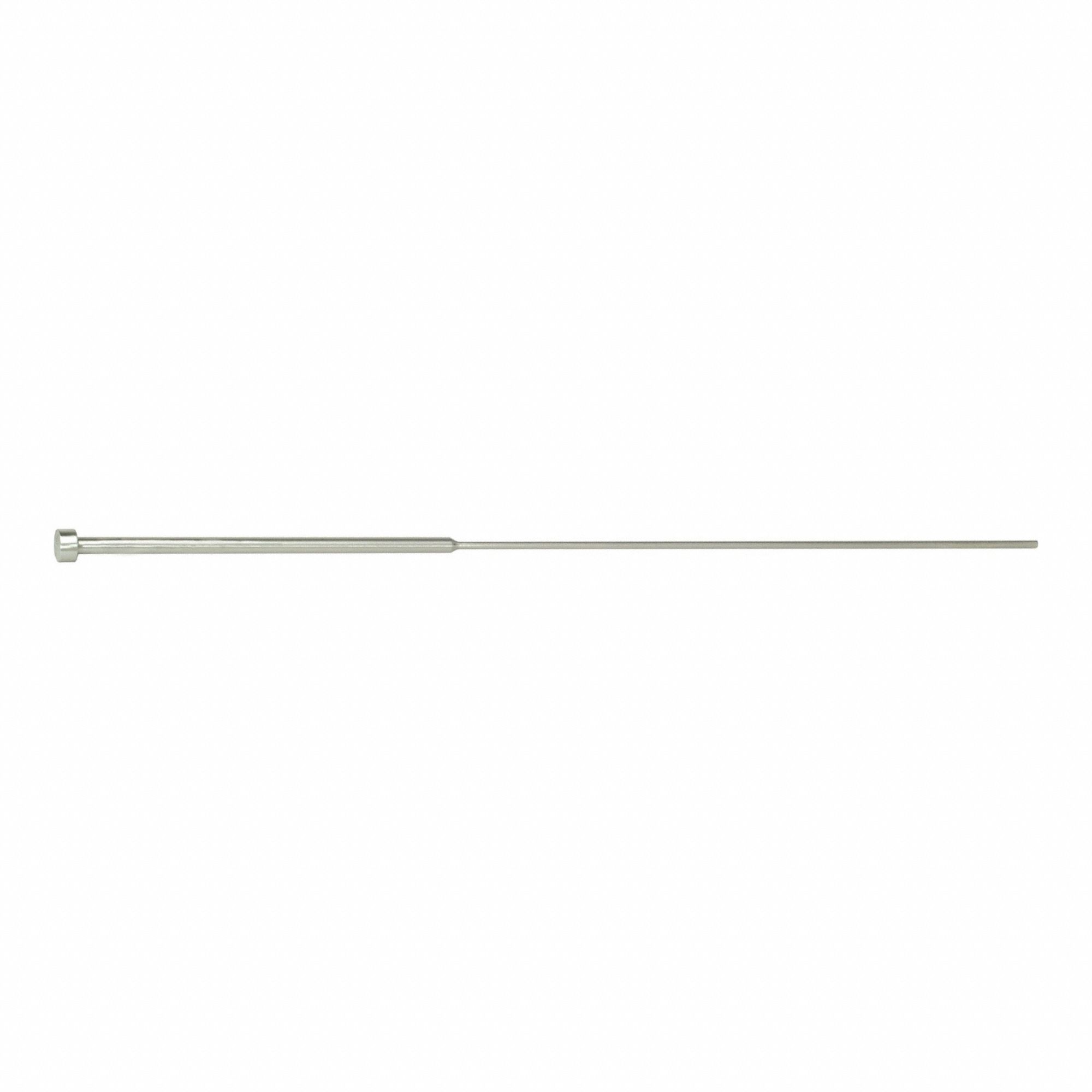

The PCS Step Ejector Pin: Step Pin (SKU 841YA7, MPN JMH2-150-1.0-50) is a general purpose stepped ejector pin made of nitrided steel. It has a 1 mm nominal diameter, 150 mm overall length, and 4 mm head diameter. Key tolerances include +2.0/-0.0 mm for step length, +0.005/-0.000 mm for step diameter, and a 0.3 mm step height.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Nitrided, Steel
Head Dia	4 mm
Nom. Dia.	1 mm
Overall Lg	150 mm
Manufacturer Part Number	JMH2-150-1.0-50
