Power Drive 3G-OTH-119660 — Technical Specifications

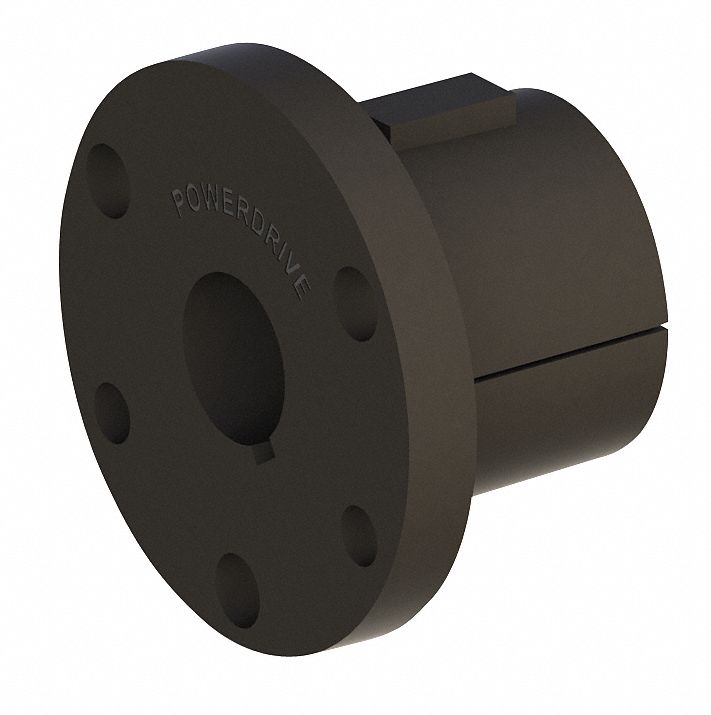

The POWER DRIVE Split Taper Bushing, model P1, is a split taper bushing with a 5/8-inch bore diameter, 2.44-inch bolt circle diameter, and 3-inch overall diameter. It features a taper of 3/4 inch per foot and is identified by manufacturer part number P1 X 5/8.
Technical Specifications
| Parameter | Value |
|---|---|
| Brand | POWER DRIVE |
| Taper | 3/4 in Per ft |
| Bore Dia | 5/8 in |
| Overall Dia | 3 in |
| Bolt Circle Dia | 2.44 in |
| Manufacturer Part Number | P1 X 5/8 |
