Ranco 3G-OTH-69489 — Technical Specifications

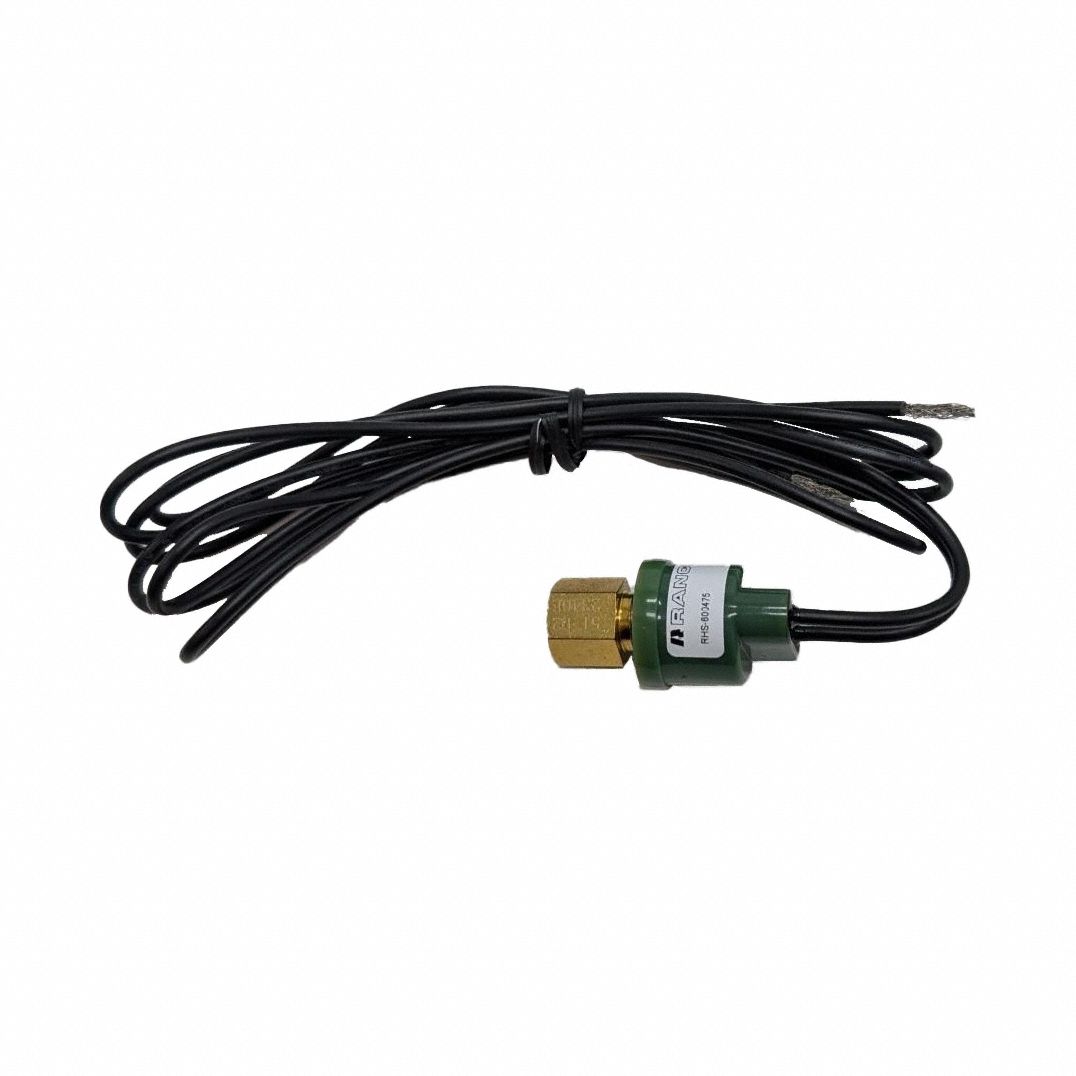

The RANCO RHS-3560 is a low-limit single-pressure control with an SPST contact form and auto reset. It features an Open on Fall switch action, a pressure set point range of 0 psi to 735 psi, and a pressure differential of 25 psi. The switch is rated for 240V AC (2.9 FLA/17.4 LRA).
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Auto Reset, 0 psi to 735 psi, 25 psi, Open on Fall, SPST |
| Brand | RANCO |
| Contact Form | SPST |
| Rated Voltage | 240V AC (2.9 FLA/17.4 LRA) |
| Switch Action | Open on Fall |
| Pressure Set Point | 0 psi to 735 psi |
| Pressure Differential | 25 psi |
| Manufacturer Part Number | RHS-3560 |
