Raychem 3G-OTH-70235 — Technical Specifications

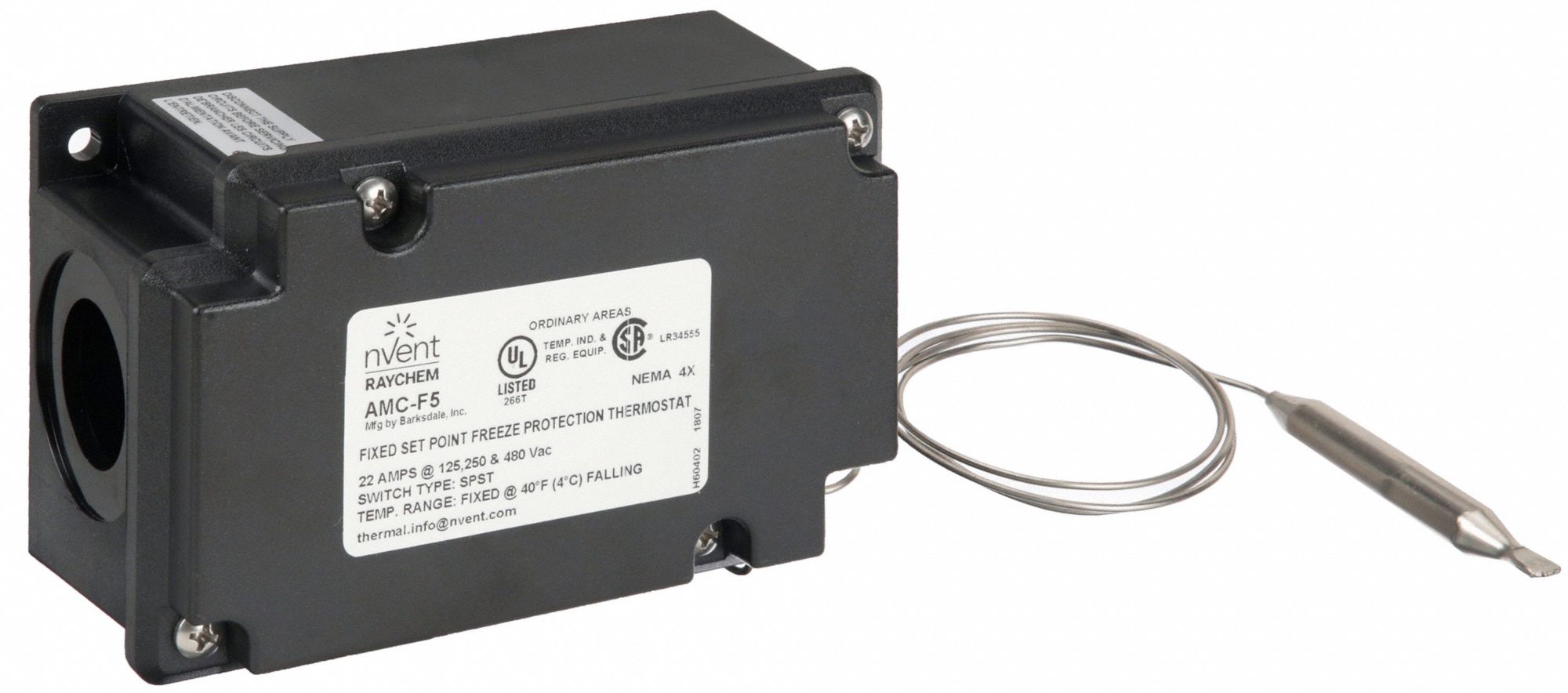

The RAYCHEM AMC-F5 is a freeze protection weatherproof single-stage control with a fixed 3°F differential and a 40°F temperature control range. It operates as an SPST switch (open on rise) and accepts 125 to 480V AC input. The unit features a plastic enclosure, a 2-1/2 ft capillary, and a 3-1/8 in x 1/4 in bulb.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Plastic, Fixed, 3°F |
| Brand | RAYCHEM |
| AC Volt | 125 to 480V |
| Voltage | 125 to 480V AC |
| Differential Type | Fixed |
| Enclosure Material | Plastic |
| Switch Type/Action | SPST, Open on Rise |
| Manufacturer Part Number | AMC-F5 |
| Temperature Differential | 3°F |
| Temperature Control Range | 40°F |
| Capillary Length/Bulb Diameter | 2-1/2 ft Capillary, 3-1/8 in x 1/4 in Bulb |
