Raytek 3G-OTH-180867 — Technical Specifications

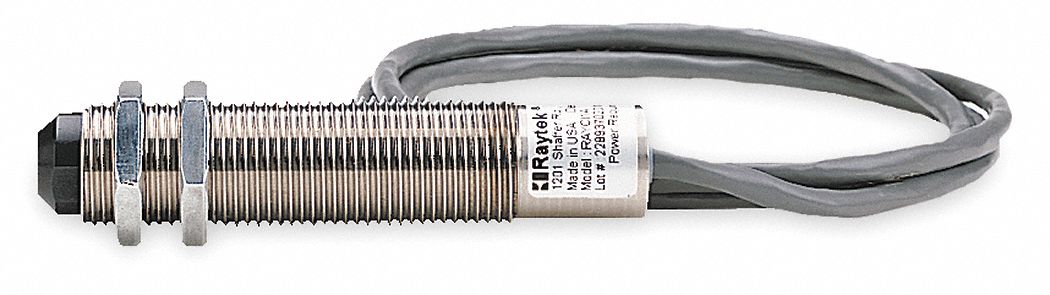

The RAYTEK Fixed Mount Infrared Temperature Sensor (model RAYCI3A10L) is a non-contact temperature measurement device with a fixed emissivity of 0.95. It features a 4:1 distance-to-spot ratio, 24V DC input, and 5V DC maximum output, housed in an IP65-rated, NEMA 4 enclosure with a 3/4"-16 UNF 2A thread. The sensor offers repeatability of +/-1% of measured value or +/-1°C (whichever is greater) and complies with ISO 9001 standards.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | RAYCI3A10L, Fixed, 4 |
| Brand | RAYTEK |
| Cable Lg | 10 ft |
| Includes | Infrared Sensor |
| IP Rating | IP65 |
| Standards | ISO 9001 |
| Thread Size | 3/4"-16 |
| Thread Type | UNF 2A |
| Input Voltage | 24V DC |
| Repeatability | +/-1% of Measured Value or +/-1°C (Whichever is Greater) |
| NEMA Enclosure Rating | 4 |
| Distance To Spot Ratio | 4:1 |
| Maximum Output Voltage | 5V DC |
| Emissivity Adjustability | Fixed |
| Manufacturer Part Number | RAYCI3A10L |
| Maximum Emissivity Setting | 0.95 |
| Minimum Emissivity Setting | 0.95 |
