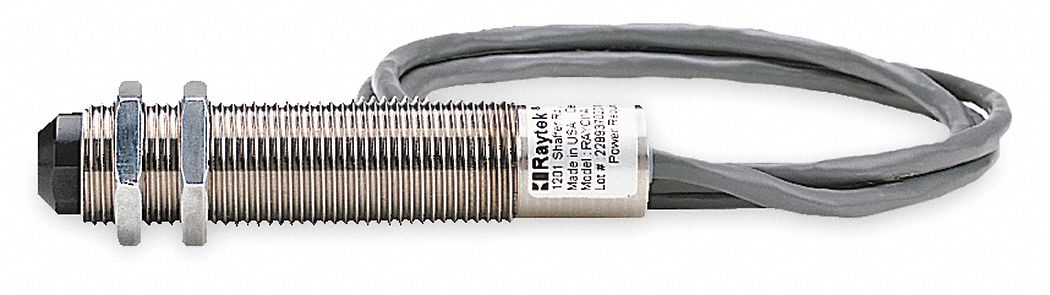

Raytek 3G-OTH-180870 — Technical Specifications
The RAYTEK Fixed Mount Infrared Temperature Sensor (SKU 1CVJ4, model RAYCI3B10L) is an infrared temperature bracket and sensor with a fixed emissivity setting of 0.95. It features a 4:1 distance-to-spot ratio, 24V DC input voltage, 5V DC maximum output voltage, IP65 and NEMA 4 ratings, and includes a water cooled jacket. The sensor has a 3/4"-16 UNF 2A thread size, a 10 ft cable length, and a repeatability of +/-1% of measured value or +/-1°C (whichever is greater), complying with ISO 9001 standards.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | RAYCI3B10L, Fixed, 4 |
| Brand | RAYTEK |
| Cable Lg | 10 ft |
| Includes | Water Cooled Jacket |
| IP Rating | IP65 |
| Standards | ISO 9001 |
| Thread Size | 3/4"-16 |
| Thread Type | UNF 2A |
| Input Voltage | 24V DC |
| Repeatability | +/-1% of Measured Value or +/-1°C (Whichever is Greater) |
| NEMA Enclosure Rating | 4 |
| Distance To Spot Ratio | 4:1 |
| Maximum Output Voltage | 5V DC |
| Emissivity Adjustability | Fixed |
| Manufacturer Part Number | RAYCI3B10L |
| Maximum Emissivity Setting | 0.95 |
| Minimum Emissivity Setting | 0.95 |
