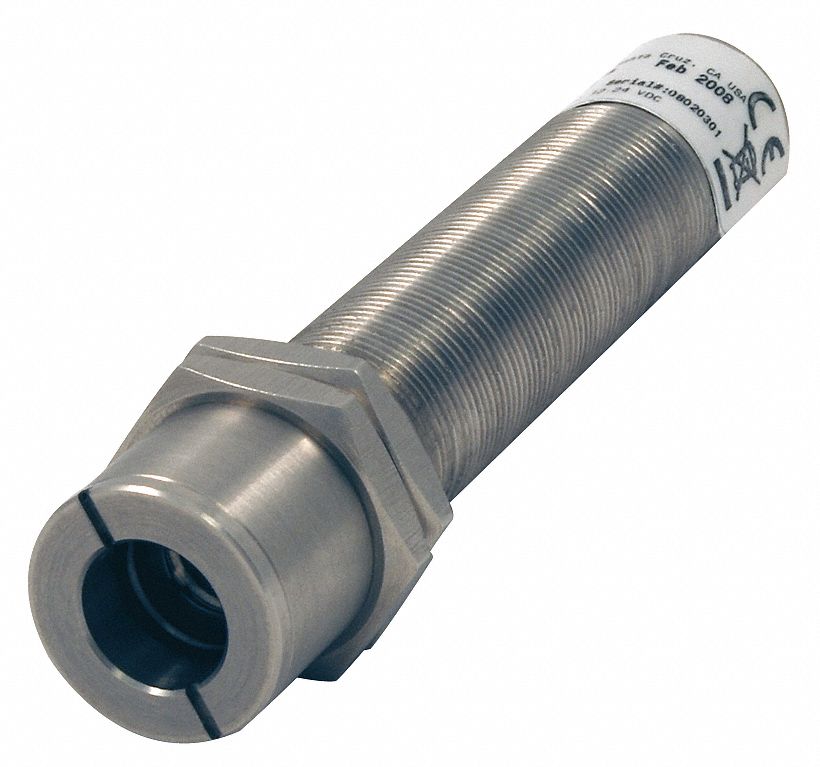

Raytek 3G-OTH-180863 — Technical Specifications
The RAYTEK Fixed Mount Infrared Temperature Sensor (SKU 5UXR5) is an infrared temperature sensor with a 13:1 distance-to-spot ratio, adjustable emissivity from 0.10 to 1.10, and a repeatability of +/-0.5% of reading +/-1ºC or +/-2ºC (whichever is greater). It operates on 24V DC input, has a maximum output voltage of 5V DC, and features a 3/4"-16 UNF thread size with an IP65 and NEMA 4 enclosure rating. The sensor includes an infrared sensor and is ISO 9001 certified.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | RAYCMLTV, Adj, 4 |
| Brand | RAYTEK |
| Cable Lg | 3.2 ft |
| Includes | Infrared Sensor |
| IP Rating | IP65 |
| Standards | ISO 9001 |
| Thread Size | 3/4"-16 |
| Thread Type | UNF |
| Input Voltage | 24V DC |
| Repeatability | +/-0.5% of Reading +/-1ºC or +/-2ºC (Whichever is Greater) |
| NEMA Enclosure Rating | 4 |
| Distance To Spot Ratio | 13:1 |
| Maximum Output Voltage | 5V DC |
| Emissivity Adjustability | Adjustable |
| Manufacturer Part Number | RAYCMLTV |
| Maximum Emissivity Setting | 1.10 |
| Minimum Emissivity Setting | 0.10 |
