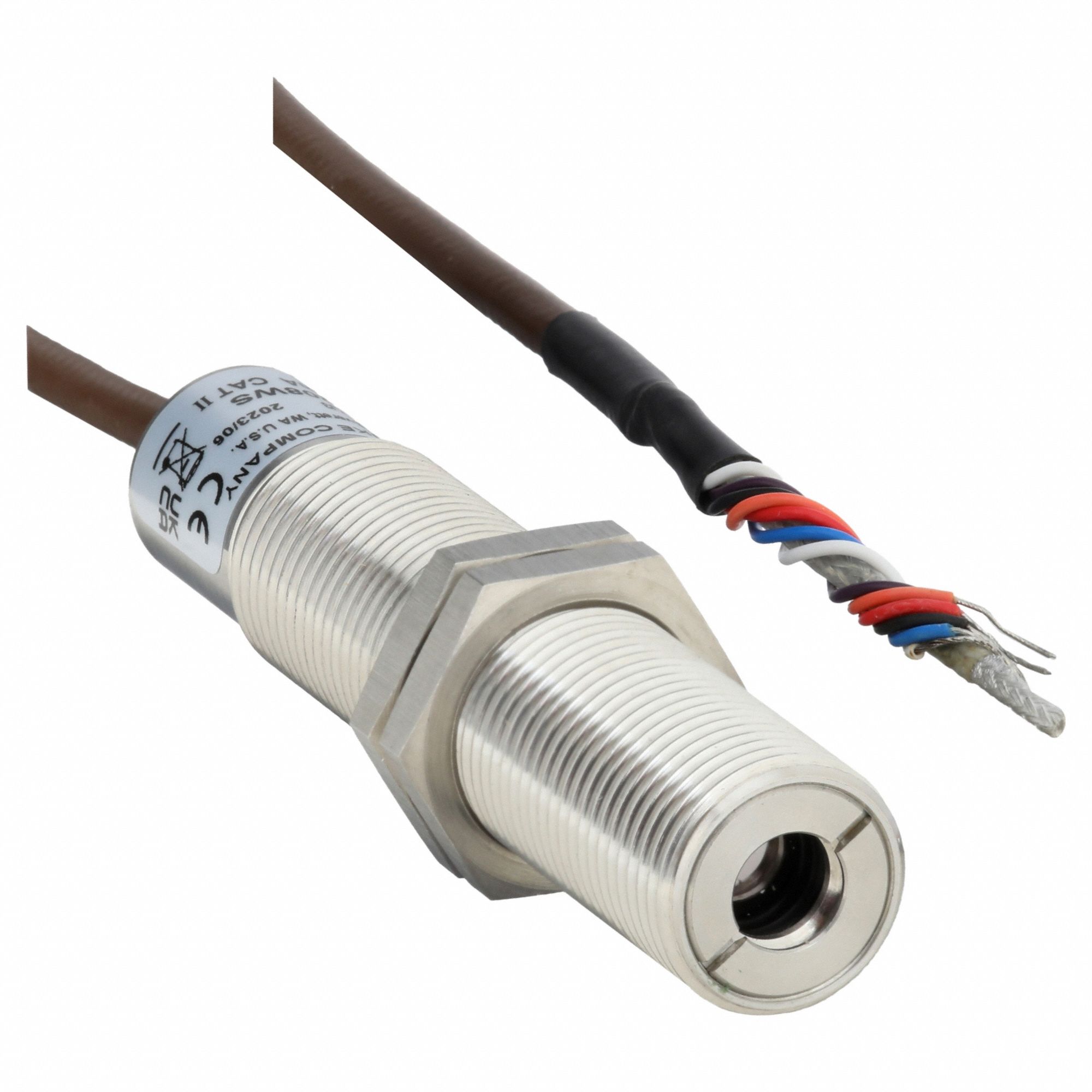

Raytek 3G-OTH-180864 — Technical Specifications
The RAYTEK Fixed Mount Infrared Temperature Sensor (SKU 5UXR8) is an infrared temperature sensor with an IP65-rated enclosure and NEMA 4 rating. It features a 13:1 distance-to-spot ratio, adjustable emissivity from 0.10 to 1.10, and operates on 24V DC input. The sensor includes a 3/4"-16 UNF thread and offers repeatability of +/-0.5% of reading +/-1ºC or +/-2ºC (whichever is greater), complying with CE standards.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | - Directive 108/EC - Directive 2004, RAYCMLTJ3 |
| Brand | RAYTEK |
| Includes | Infrared Sensor |
| IP Rating | IP65 |
| Standards | CE |
| Thread Size | 3/4"-16 |
| Thread Type | UNF |
| Input Voltage | 24V DC |
| Repeatability | +/-0.5% of Reading +/-1ºC or +/-2ºC (Whichever is Greater) |
| NEMA Enclosure Rating | 4 |
| Distance To Spot Ratio | 13:1 |
| Emissivity Adjustability | Adjustable |
| Manufacturer Part Number | RAYCMLTJ3 |
| Maximum Emissivity Setting | 1.10 |
| Minimum Emissivity Setting | 0.10 |
