Reelcraft 3G-OTH-477673 — Technical Specifications

Name: Reelcraft 3G-OTH-477673 REELCRAFT Spring Return Hose Reel: 75 ft (1/2 in I.D.), 1/2 in MNPT, 3,000 psi Max Op Pressure, Red (MPN 82075 OMP). Key specifications — Reel Color: Red; Overall Dimensions: 24 in L x 10-1/2 in W x 25-3/8 in H; Hose Capacity: 75 ft (1/2 in I.D.); Swivel Material: Nickel Plated Steel; Hose End Configuration: 1/2 in MNPT.
Brand: Reelcraft

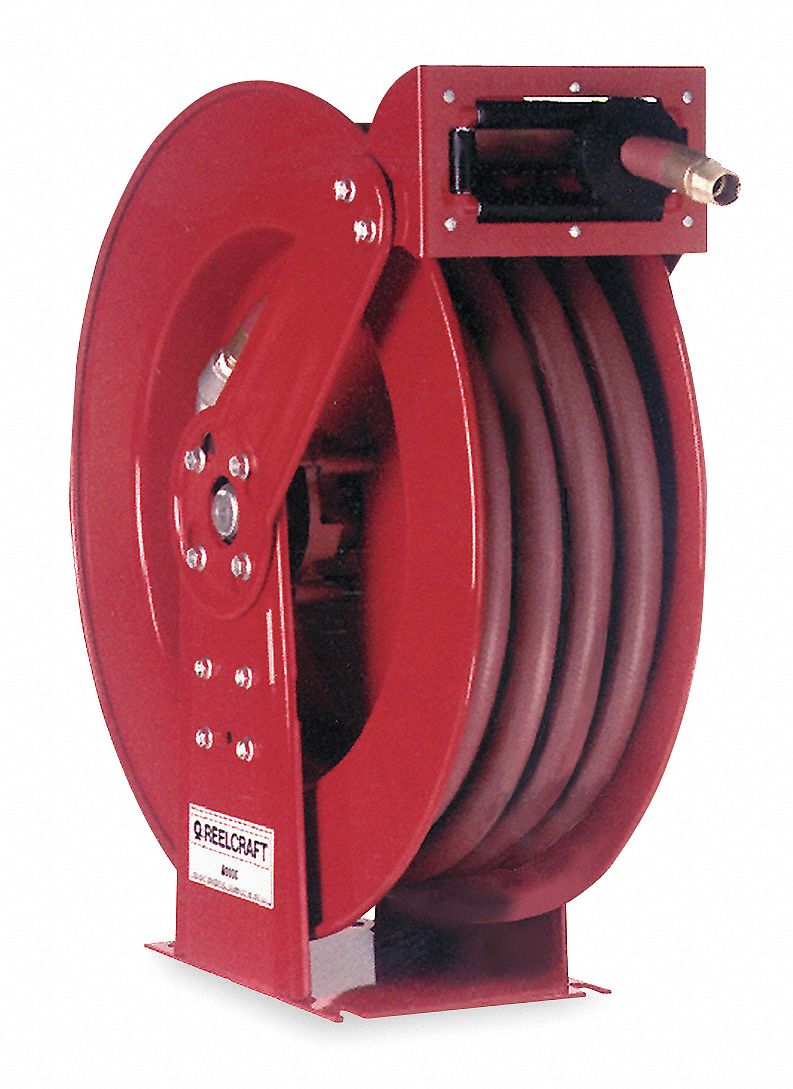

The REELCRAFT 82075 OMP is a dual-arm oil spring-return hose reel in red, with a 75 ft (1/2 in I.D.) hose capacity and 1/2 in MNPT hose end configuration. It features a nickel-plated steel swivel, supports a maximum operating pressure of 3,000 psi, and measures 24 in L x 10-1/2 in W x 25-3/8 in H.

View Product & Quote

Technical Specifications

Parameter	Value
MNPT	1/2 in
Type	Red
Reel Color	Red
Hose Capacity	75 ft (1/2 in I.D.)
Max Op Pressure	3,000 psi
Swivel Material	Nickel Plated Steel
Overall Dimensions	24 in L x 10-1/2 in W x 25-3/8 in H
Hose End Configuration	1/2 in MNPT
Manufacturer Part Number	82075 OMP
